3.5英寸，CTP触摸屏，320*240 ，24位RGB，HX8238 IC， 54 PIN

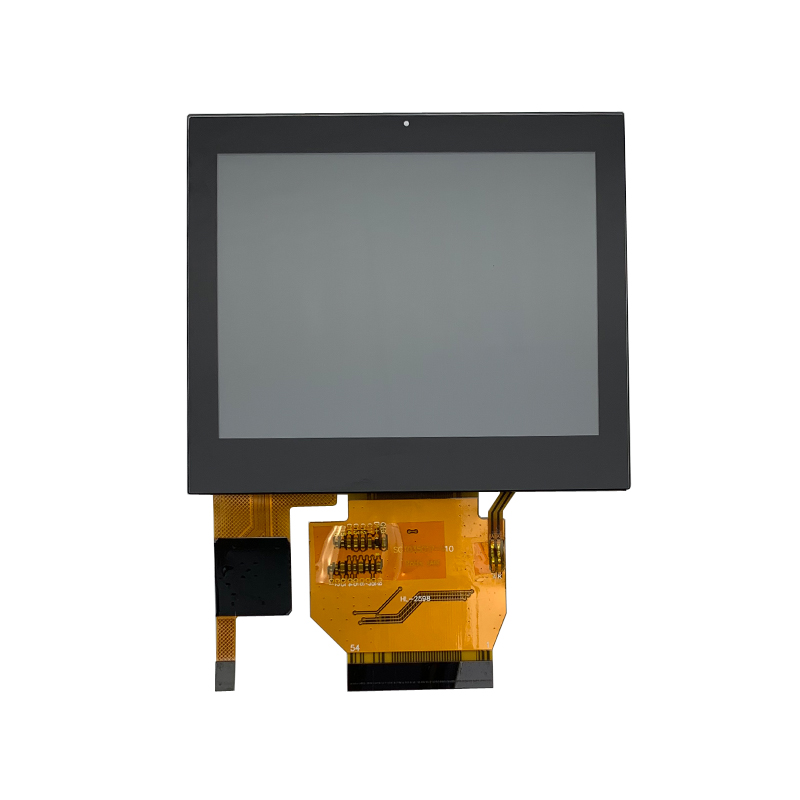

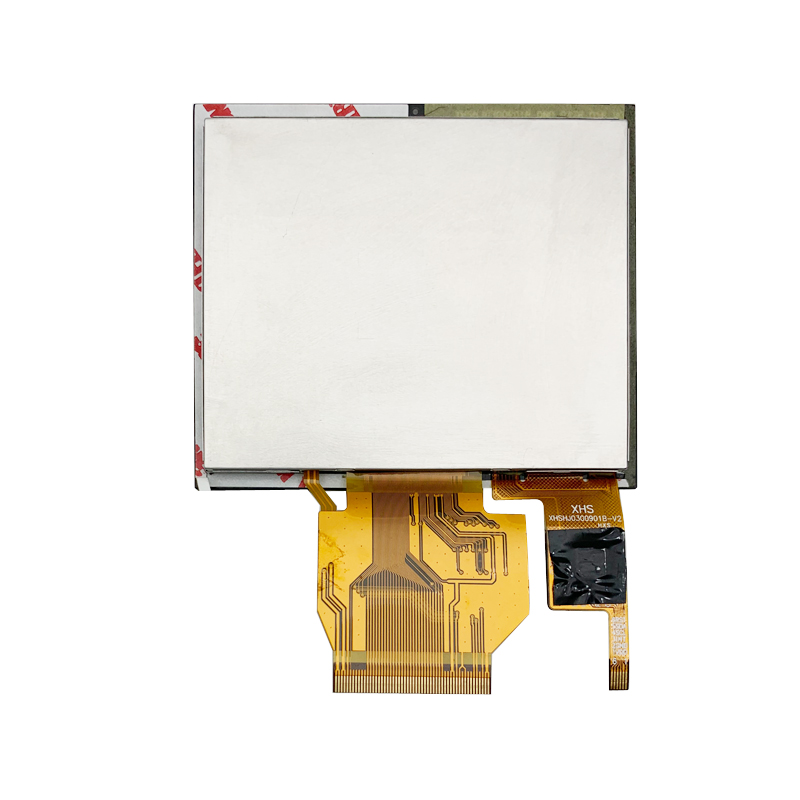

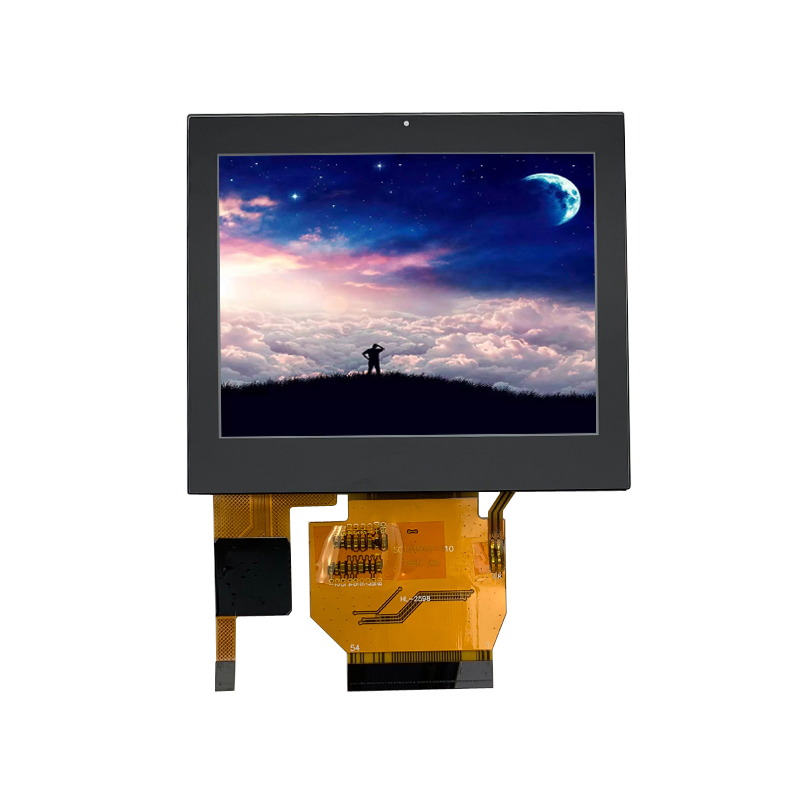

SCT035017-V01 is a 3.5 inch CTP TFT LCD Display with 320RGB*240 resolution, 3.5 capacitive touch screen built in with HX8238-D IC, and it supports 24bit RGB with Serial Interface, 54 PIN, 6 o’clock view direction
DESCRIPTION

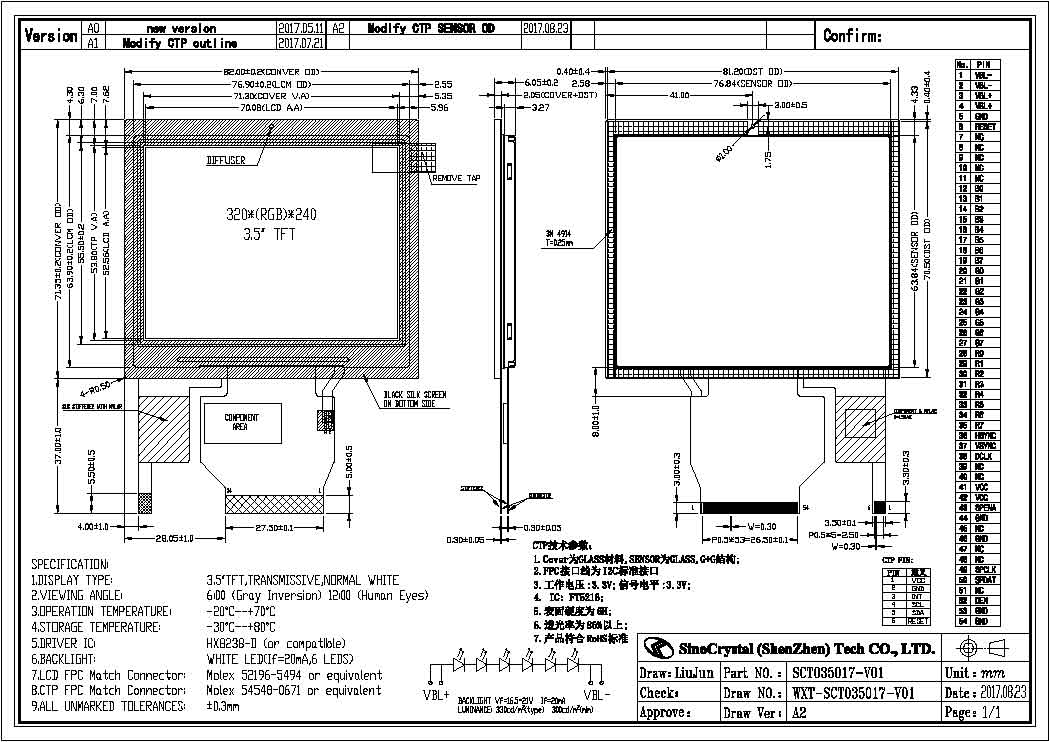

Drawing
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 320 x RGB x 240 | Dots |
| Module Size ( W×H×T ) | 76.90*63.90*3.27 | mm. |
| Active Area ( W×H ) | 70.08*52.56 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 24bit RGB with Serial Interface | – |
| Driving IC | HX8238-D | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | Active maritx TFT, Transmissive type | – |
| LCD Mode | TN / Normal White | – |
| Backlight Type | LED x 6 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
|---|---|---|---|
| 1 | LED- | – | LED light, cathode |
| 2 | LED- | – | LED light, cathode |
| 3 | LED+ | – | LED light, anode |
| 4 | LED+ | – | LED light, anode |
| 5 | GND | 0V | Ground |
| 6 | RESET | H/L | Reset signal |
| 7 | NC | – | Not use |
| 8 | NC | – | Not use |
| 9 | NC | – | Not use |
| 10 | NC | – | Not use |
| 11 | NC | – | Not use |
| 12 | B0 | H/L | Blue Data |
| 13 | B1 | H/L | Blue Data |
| 14 | B2 | H/L | Blue Data |
| 15 | B3 | H/L | Blue Data |
| 16 | B4 | H/L | Blue Data |
| 17 | B5 | H/L | Blue Data |
| 18 | B6 | H/L | Blue Data |
| 19 | B7 | H/L | Blue Data |
| 20 | G0 | H/L | Green Data |
| 21 | G1 | H/L | Green Data |
| 22 | G2 | H/L | Green Data |
| 23 | G3 | H/L | Green Data |
| 24 | G4 | H/L | Green Data |
| 25 | G5 | H/L | Green Data |
| 26 | G6 | H/L | Green Data |
| 27 | G7 | H/L | Green Data |
| 28 | R0 | H/L | Red Data |
| 29 | R1 | H/L | Red Data |
| 30 | R2 | H/L | Red Data |
| 31 | R3 | H/L | Red Data |
| 32 | R4 | H/L | Red Data |
| 33 | R5 | H/L | Red Data |
| 34 | R6 | H/L | Red Data |
| 35 | R7 | H/L | Red Data |
| 36 | HSYNC | H/L | Horizontal Sync Input |
| 37 | VSYNC | H/L | Vertical Sync Input |
| 38 | PCLK | H/L | Pixel Dot Data Clock |
| 39 | NC | – | Not use |
| 40 | NC | – | Not use |
| 41 | VCI | P | Power supply |
| 42 | VCI | P | Power supply |
| 43 | SPENA | H/L | SPI Interface Chip Select |
| 44 | GND | 0V | Ground |
| 45 | NC | – | Not use |
| 46 | GND | 0V | Ground |
| 47 | NC | – | Not use |
| 48 | NC | – | Not use |
| 49 | SPCLK | H/L | SPI Interface Data Clock |
| 50 | SPDAT | H/L | SPI Interface Data |
| 51 | NC | – | Not use |
| 52 | DE | H/L | Data Enable Input |
| 53 | GND | 0V | Ground |
| 54 | GND | 0V | Ground |
