10.1英寸TFT-LCD，1024×600 ，40PIN
DESCRIPTION

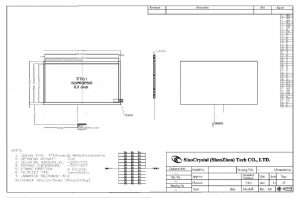

Drawing
General Specification
| Item | Specification | remark |
|---|---|---|
| LCD Size | 10.1 inch(Diaginal) | |
| Driver element | a-Si TFT active matrix | |
| Resolution | 1024× 3(RGB) × 600 | |
| Display Mode | Normally White | |
| Dot Pitch | 0.2175(w)X0.2088(H)mm | |
| Active Area | 222.72(w)x125.28(H)mm | |
| Panel Size | 235.0(w)x143.0(H)x5.0(D) | Note 1 |
| Surface treatment | Anti-Glare | |
| Color arrangement | RGB-stripe | |
| Interface | Digital | |
| Panel power consumption | 0.3W(Typ) | |
| Weight | TBD |

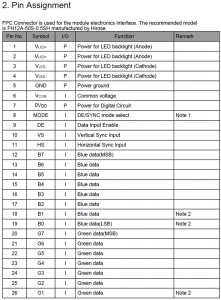

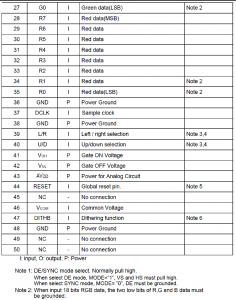

Interface Definition
