1.8英寸128×160，ST7735S和，8位MCU接口，TFT LCD显示屏

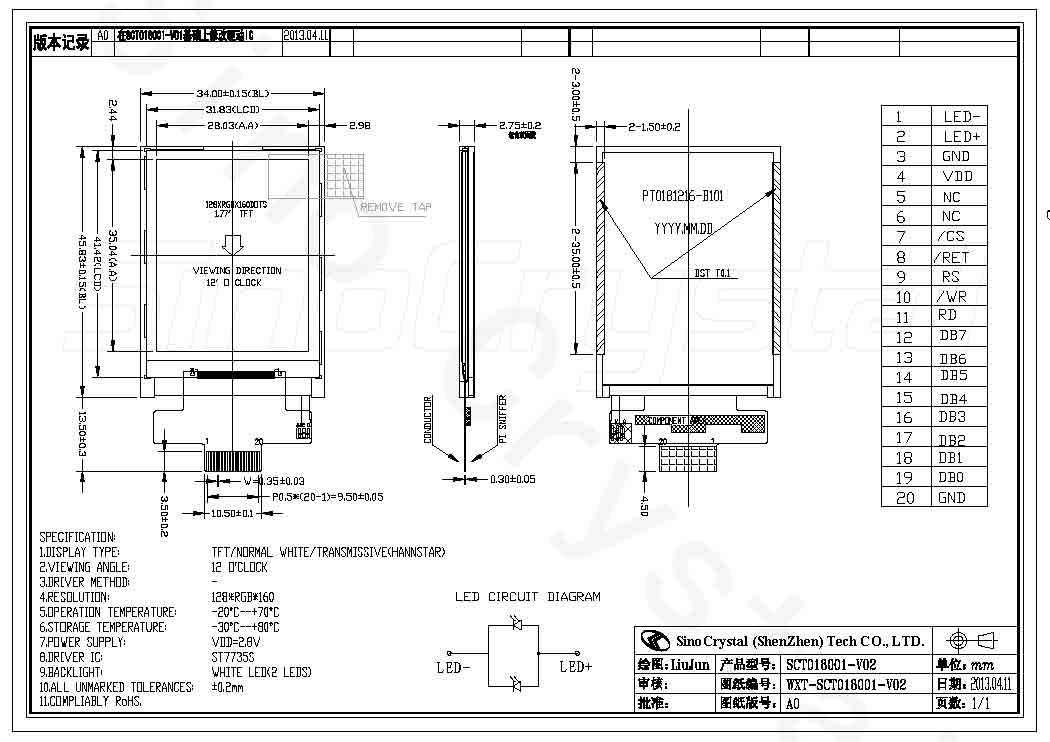

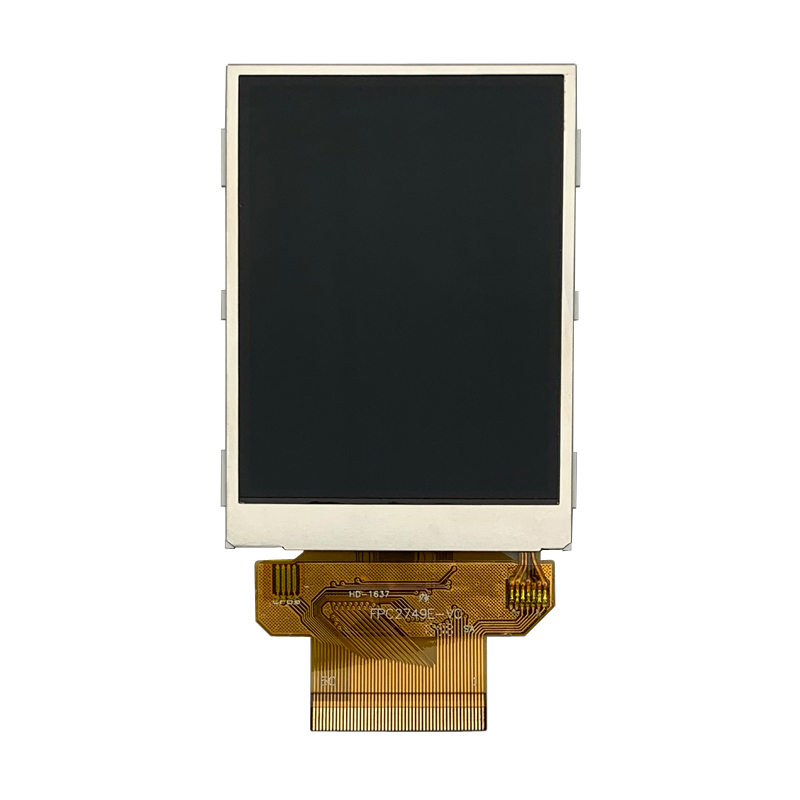

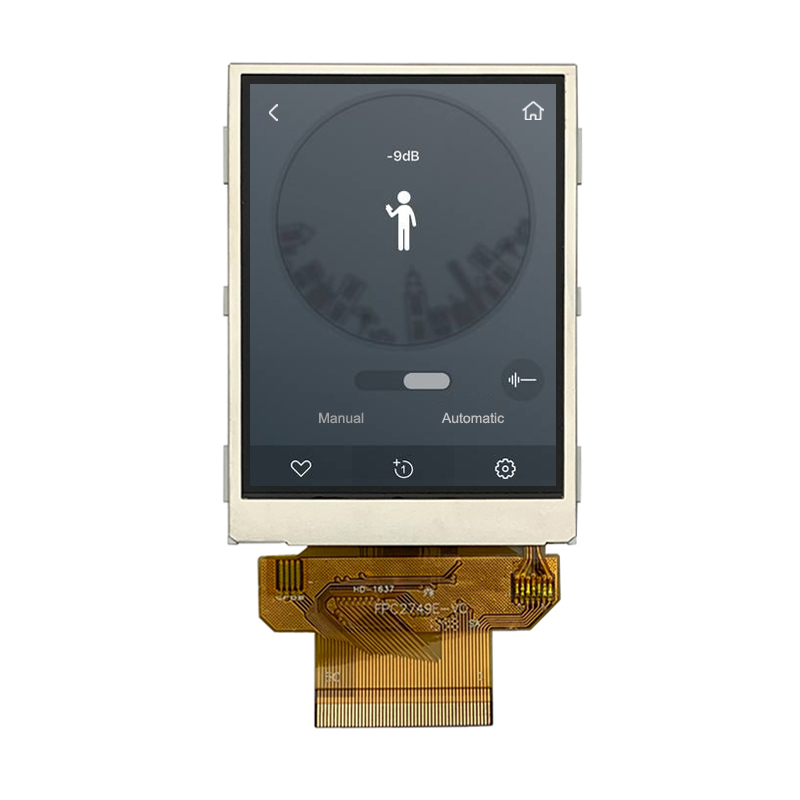

SCT018001-V02是彩色TFT 128×160 LCD显示模块，对角线尺寸为1.77英寸。 该模块内置ST7735S-G4 IC； 它支持8位MCU接口。 观看方向是12点。
DESCRIPTION
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 128 x RGB x 160 | Dots |
| Module Size ( W×H×T ) | 34.0 x 45.83 x 2.75(max) | mm. |
| Active Area ( W×H ) | 28.032 x 35.040 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.219 x 0.219 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 8 bit MCU | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | LED x 2 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description | |
|---|---|---|---|---|
| 1 | LED- | – | LED light, cathode. | |
| 2 | LED+ | – | LED light, anode | |
| 3 | GND | 0V | Ground | |
| 4 | VDD | 2.3-3.6V | Power supply | |
| 5 | NC | – |
|
|
| 6 | NC | – | Dummy | |
| 7 | /CS | H/L | Chip Select signal | |
| 8 | /RESET | H/L | Chip reset signal | |
| 9 | RS | H/L | Register select signal. 0:index register; 1: data register | |
| 10 | /WR | H/L | Write signal | |
| 11 | /RD | H/L | Read signal | |
| 12 | DB7 | H/L | data bus 7 | |
| 13 | DB6 | H/L | data bus 6 | |
| 14 | DB5 | H/L | data bus 5 | |
| 15 | DB4 | H/L | data bus 4 | |
| 16 | DB3 | H/L | data bus 3 | |
| 17 | DB2 | H/L | data bus 2 | |
| 18 | DB1 | H/L | data bus 1 | |
| 19 | DB0 | H/L | data bus 0 | |
| 20 | GND | 0V | Ground |
