3.5英寸，电容触摸屏，320*240， 24bit RGB，，HX8238 IC， 60 PIN

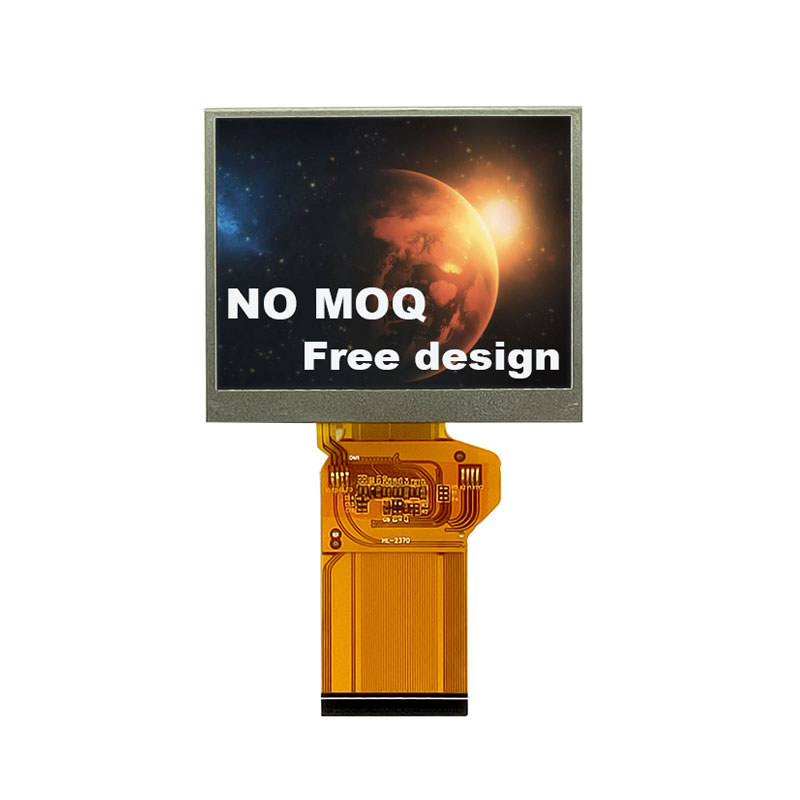

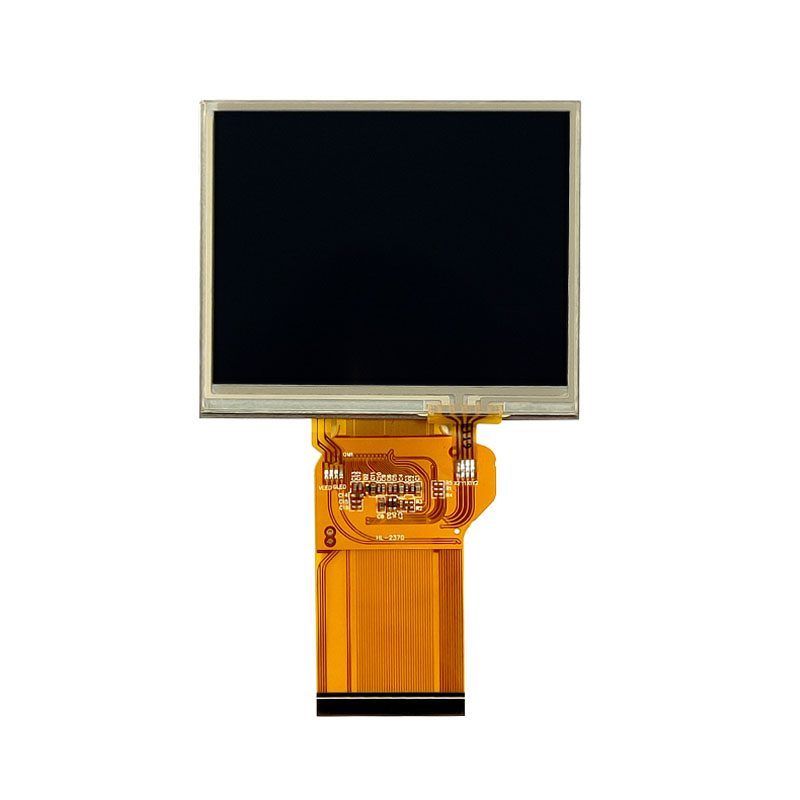

SCT035011-V02 is a 3.5 inch TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB with Serial Interface, 60 PIN, 6o’clock view direction

Inquiry Now

SKU: SCT035011-V02

Type:	TFT彩屏
Mode:	TN
Product No.:	SCT035011-V02
Size:	3.5''
Resolution:	320*240

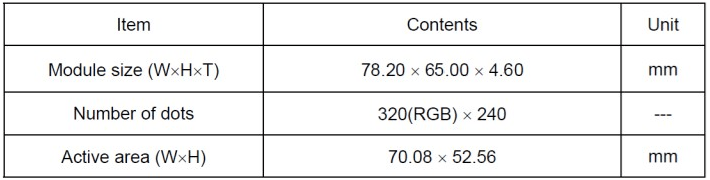

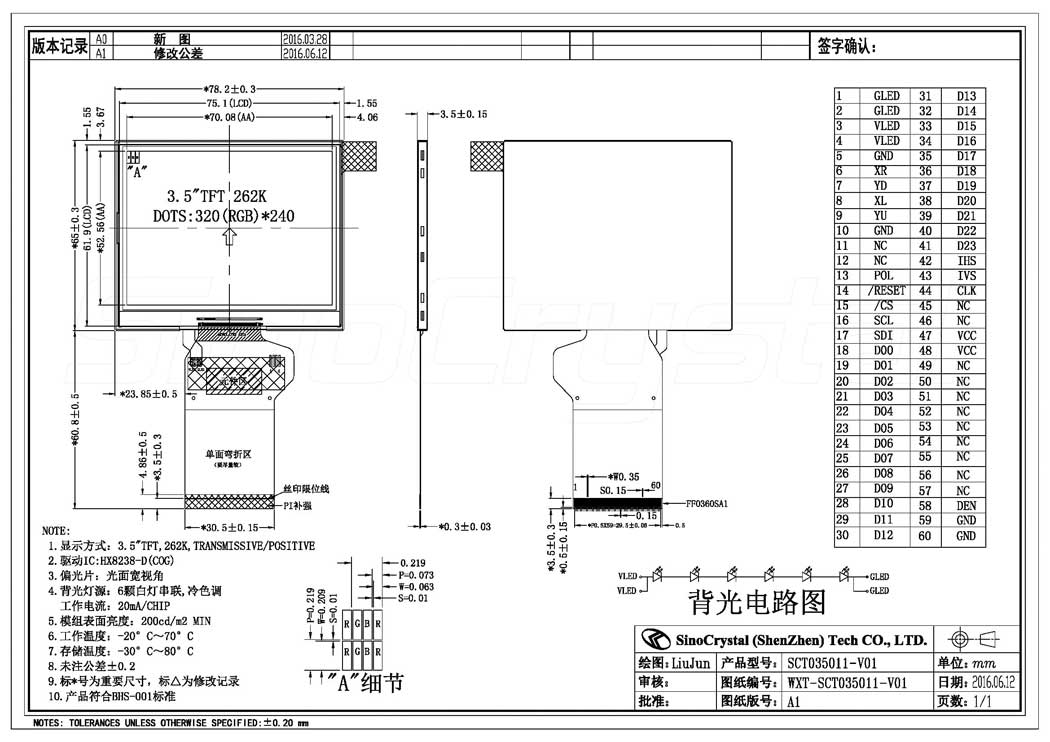

Outline Dimension:	78.2654.6
Active Area:	70.08*52.56

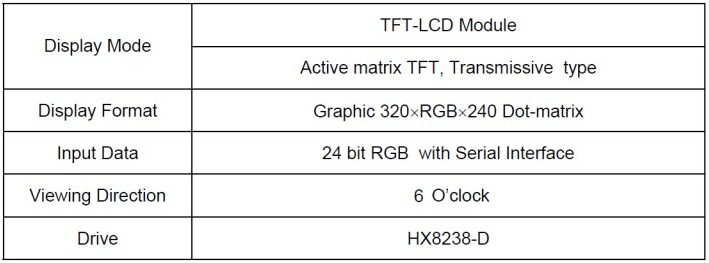

Interface:	24bit RGB with Serial Interface
IC:	HX8238-D
Brightness:	300Cd/m2
Touch Screen:	RTP
View Direction:	6 o'clock

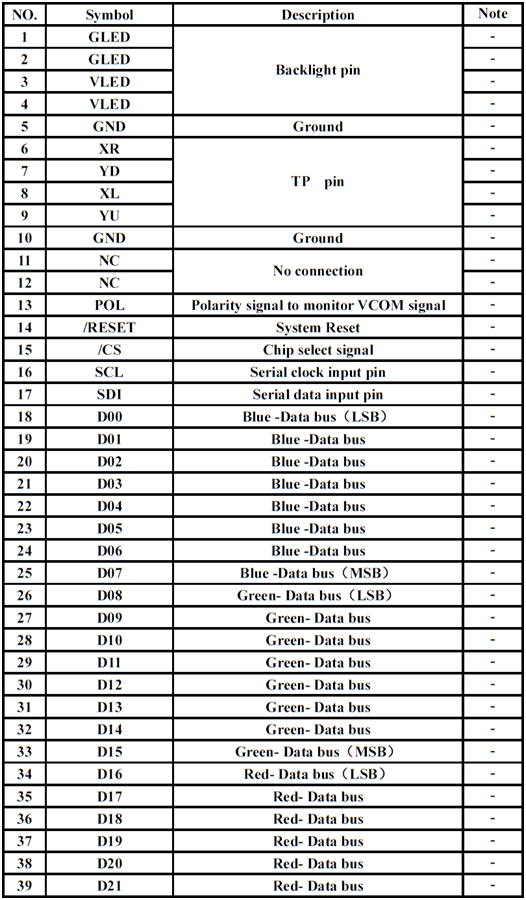

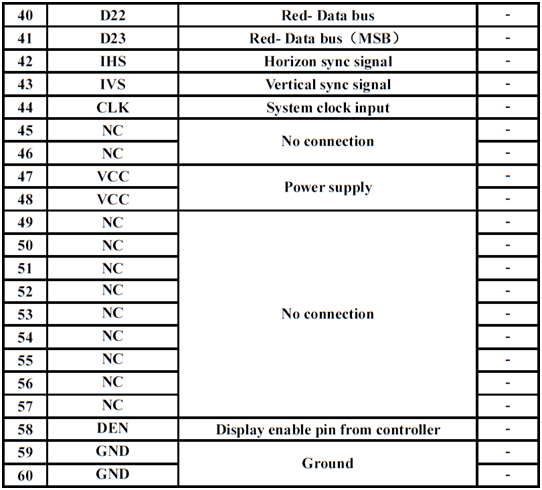

Pin No.:	60
Shape:	方形
