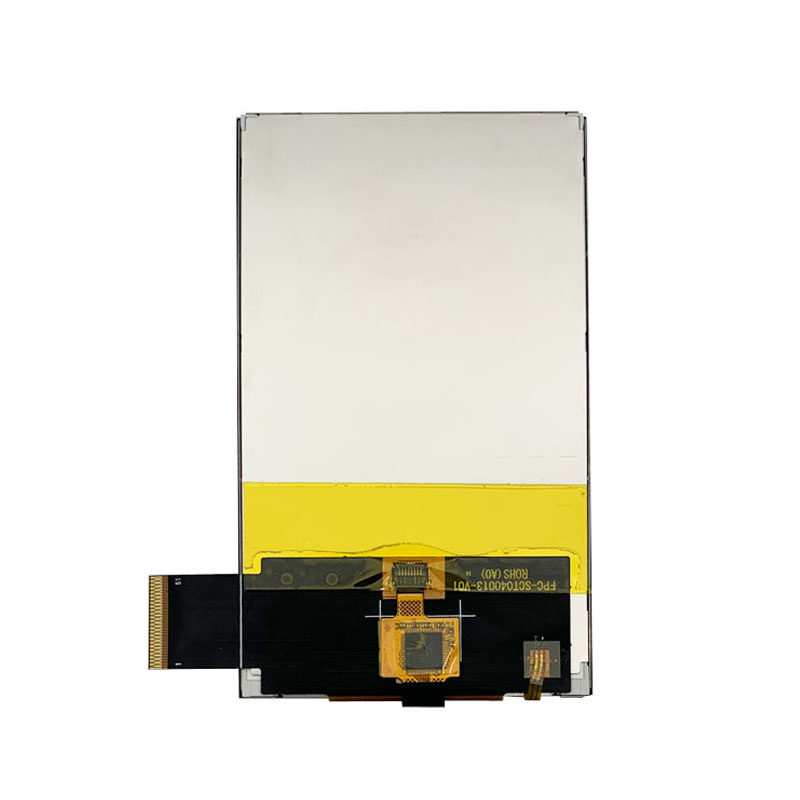

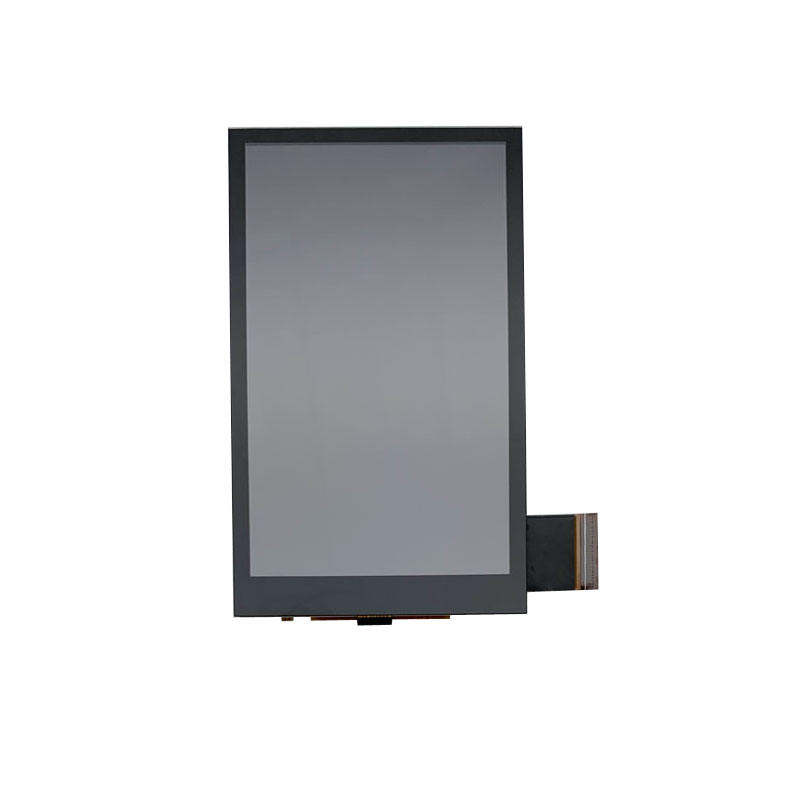

4英寸IPS，全触摸彩色LCD, 480*800 ,51 PIN

Inquiry Now

SKU: SCT040013-V01

DESCRIPTION

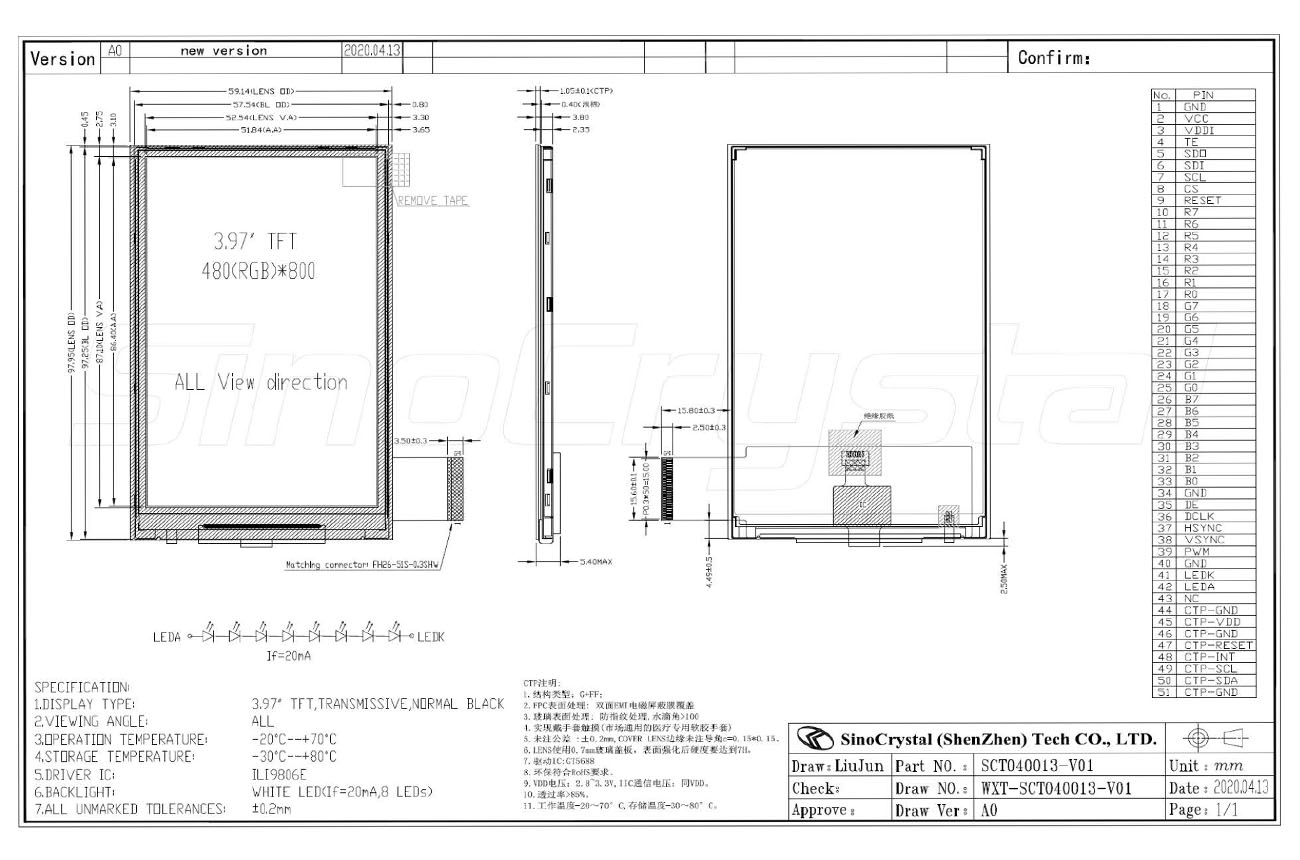

Drawing

General Specification

Item	Nominal Dimension	Unit
Dot Matrix	480 x RGB x 800	Dots
Module Size ( W×H×T )	59.14 × 97.95 × 3.80	mm.
Active Area ( W×H )	51.84 × 86.40	mm.
Pixel arrangement	R.G.B. Stripe	mm.
Dot Pitch ( W×H )	0.108 × 0.108	mm.
Color depth	16.7M	colors
Interface	SPI + RGB	–
Display Mode	Normally Black, Transmissive	–
Operating temperature	-20 ~70	ºC
Storage temperature	-30~80	ºC
LCD Type	IPS	–
LCD Mode	Normal Black	–
Backlight Type	LED x 8	PCS

Interface Definition

Pin No.	Symbol	Type	Description
1	GND	P	Ground
2	VCC	P	Power supply for system
3	VDDI	P	Power supply for I/O
4	TE	O	Tearing effect output
5	SDO	O	Serial data output
6	SDI	I	Serial data input
7	SCL	I	Serial interface clock
8	CS	I	Chip Select signal
9	RESET	I	Chip reset signal
10-17	R7 – R0	I	Data bus for Red
18-25	G7 – G0	I	Data bus for Green
26-33	B7 – B0	I	Data bus for Blue
34	GND	P	Ground
35	DE	I	Data enable input
36	PCLK	I	Pixel clock input
37	HSYNC	I	Horizontal sync input
38	VSYNC	I	Vertical sync input
39	PWM	O	PWM frequency output for LED driver control (open when not in use)
40	GND	P	Ground
41	LEDK	P	LED driving cathode
42	LEDA	P	LED driving anode
43	NC	–	No connection
44	CTP-GND	P	Ground for CTP
45	CTP-VDD	P	Power supply for CTP
46	CTP-GND	P	Ground for CTP
47	CTP-RESET	I	Chip reset signal for CTP
48	CTP-INT	O	CTP interrupt output
49	CTP-SCL	I	CTP I2C clock
50	CTP-SDA	I/O	CTP I2C data
51	CTP-GND	P	Ground for CTP
