2.4“TFT，4行SPI ，HX8347I IC
SCT024010-V01 is a 2.4” TFT LCD Display with 240RGB*320 resolution, it built in with HX8347I IC, and it supports 4-line SPI interface, 10 PIN, 12 o’clock View direction.
DESCRIPTION

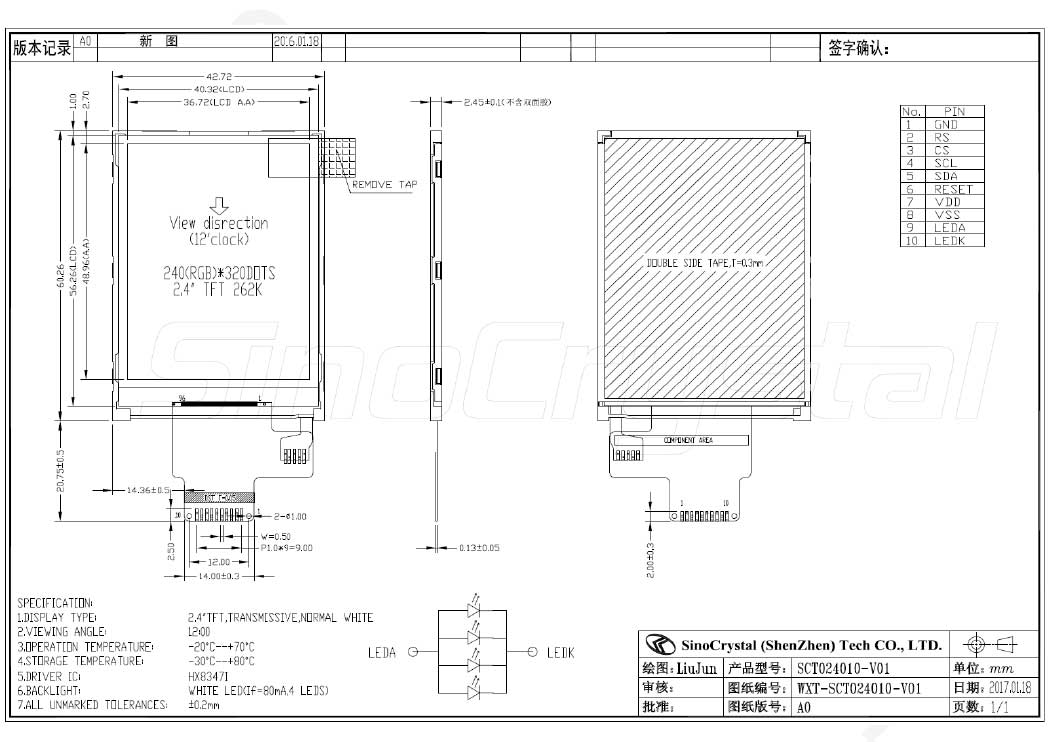

Drawing
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 2.45 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 4-line SPI | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | LED x 4 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
|---|---|---|---|
| 1 | GND | 0V | Ground |
| Command / parameter or display data selection 0: Command or parameter | |||
| 2 | RS | H/L | 1: Display data |
| 3 | CS | 0V | Chip select |
| 4 | SCL | H/L | SPI clock |
| 5 | SDA | H/L | SPI data |
| 6 | RESET | H/L | Reset signal |
| 7 | VCC | 2.8-3.2V | Power supply |
| 8 | GND | 0V | Ground |
| 9 | LEDA | – | LED light, anode |
| 10 | LEDK | – | LED light, cathode. |
