8英寸， 800 * 600， TFT LCD显示模块，带RTP

Inquiry Now

SKU: SCT080004-V01

DESCRIPTION

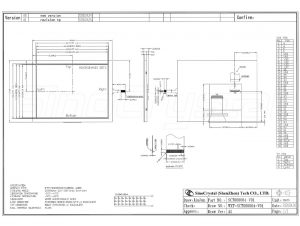

Drawing

General Specification

Item	Standard value	Unit
LCD Size	8	inch
Dot Matrix	800(RGB) × 600	pixel
Module Size	183.00 × 141.00 × 10.26	mm
Active Area	162.00 × 121.50	mm
Dot Pitch	0.2025 × 0.2025	mm
Pixel Configuration	R.G.B. Stripe	–
Color depth	262K	–
Display Mode	Normally White, Transmissive	–
Technology Type	a-Si	–
Viewing Direction	12 o’clock	–
Gray Scale Inversion Direction	6 o’clock	–
Driver IC	TBD	–
Interface	RGB, DE Mode	–
LED Numbers	27 LEDs	–
Weight	TBD	g

Interface Definition

Pin No.	Symbol	Type	Description
1	A	P	LED Backlight driving anode
2	A	P	LED Backlight driving anode
3	K	P	LED Backlight driving cathode
4	K	P	LED Backlight driving cathode
5	GND	P	Power ground
6	GND	P	Power ground
7	VDD	P	Power supply
8	VDD	P	Power supply
9	VDD	P	Power supply
10	VDD	P	Power supply
11	DE	I	Data enable
12	GND	P	Power ground
13	B5	I	Blue data
14	B4	I	Blue data
15	B3	I	Blue data
16	GND	P	Power ground
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data
20	GND	P	Power ground
21	G5	I	Green data
22	G4	I	Green data
23	G3	I	Green data
24	GND	P	Power ground
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data
28	GND	P	Power ground
29	R5	I	Red data
30	R4	I	Red data
31	R3	I	Red data
32	GND	P	Power ground
33	R2	I	Red data
34	R1	I	Red data
35	R0	I	Red data
36	GND	P	Power ground
37	GND	P	Power ground
38	DCLK	I	Sample clock
39	GND	P	Power ground
40	GND	P	Power ground
