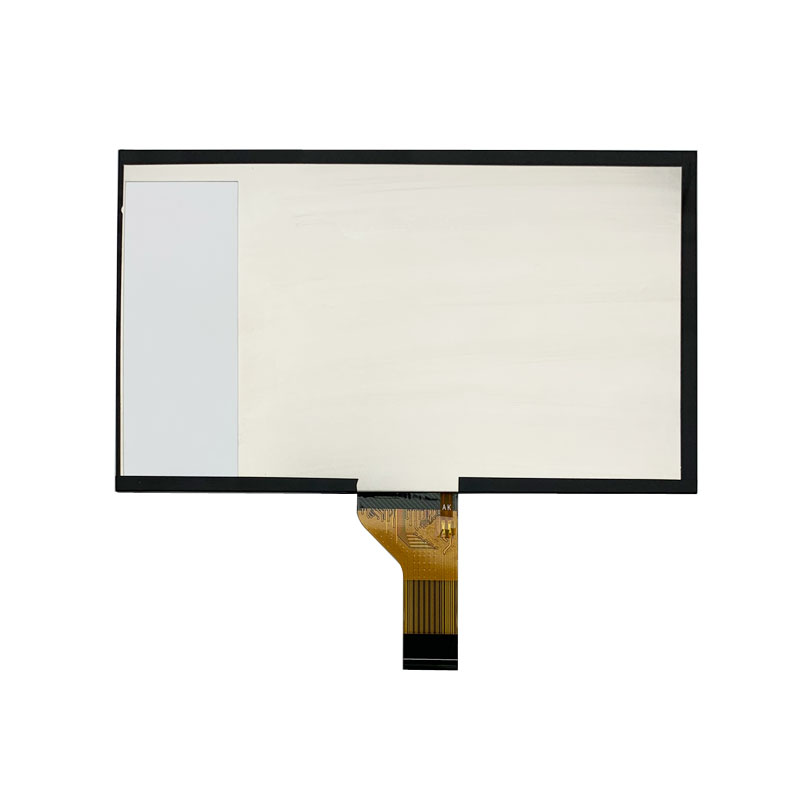

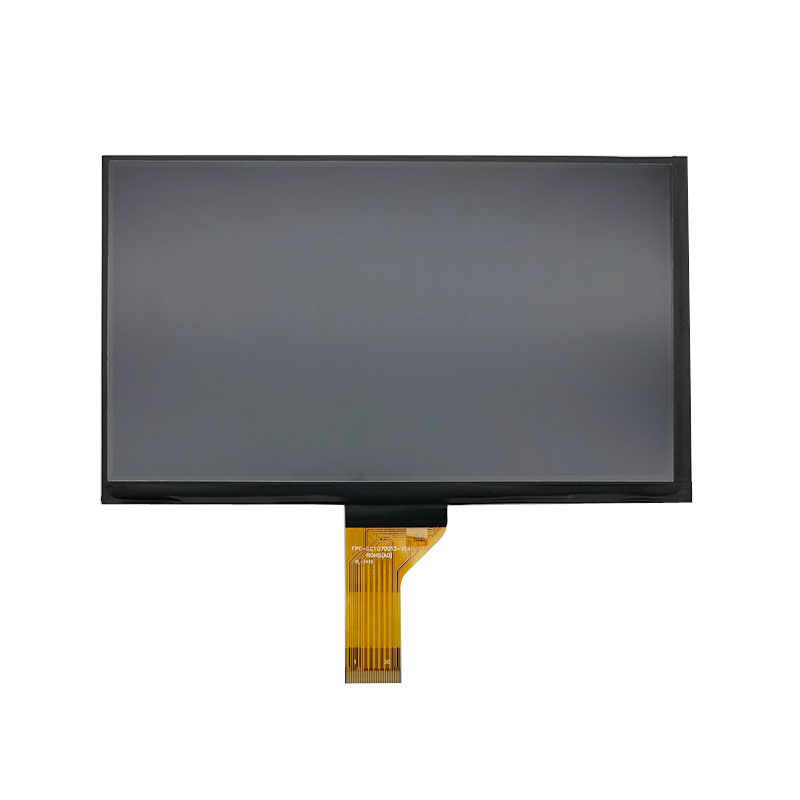

7英寸 1024X600， IPS，TFT-LCD液晶显示屏

7英寸 1024X600， IPS，TFT-LCD液晶显示屏

Inquiry Now
SKU: SCT070013-V01
Type: TFT彩屏
Mode: IPS
Product No.: SCT070013-V01
Size: 7.0''
Resolution: 1024*600
Outline Dimension: 164.9*100.0*3.35
Active Area: 154.21*85.92
Interface: MIPI
IC: EK79007
Brightness: 300Cd/m2
Touch Screen: No
View Direction: IPS
Pin No.: 30
Shape: 方形

DESCRIPTION

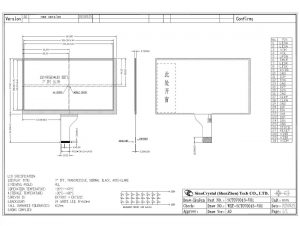

Drawing





Mechanical Specifications

Item Nominal Dimension Unit
Dot Matrix 1024 x RGB x 600 Dots
Module Size ( W×H×T ) 163.8 x 97.0 x 2.71 mm.
Active Area ( W×H ) 154.21 x 85.92 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.1506 x 0.1432 mm.
Color depth 16.7M（MAX） colors
Interface MIPI –
Driving IC EK79007 or Compatible –



Display Specifications

Item Nominal Dimension Unit
Operating temperature -20 ~70 ℃
Storage temperature -30~80 ℃
LCD Type a-Si TFT –
LCD Mode Normal Black –
Backlight Type LED x 24 PCS





Interface Definition

Pin No Pin Symbol Type Description
1 LEDA P Backlight Power, anode.
2 LEDA P Backlight Power, anode.
3 VGH P Power supply for Gate ON Voltage
4 VGL P Power supply for Gate OFF Voltage
5 UPDN I Horizontal direction, up or down.
6 SHLR I Horizontal direction, left or right.
7 LEDK P Backlight Power, cathode.
8 LEDK P Backlight Power, cathode.
9 AVDD P Power supply analog circuit
10 GND P Power ground
11 D3P I MIPI data input
12 D3N I MIPI data input
13 GND P Power ground
14 D2P I MIPI data input
15 D2N I MIPI data input
16 GND P Power ground
17 CLKP I MIPI clock input
18 CLKN I MIPI clock input
19 GND P Power ground
20 D1P I MIPI data input
21 D1N I MIPI data input
22 GND P Power ground
23 D0P I MIPI data input
24 D0N I MIPI data input
25 GND P Power ground


26



STBYB

 I Standby mode.

H: Normal operation

L: Driver turn off, No output.
27 RESET I Reset signal
28 VDD P Power supply for MIPI circuit and digital circuit   (1.8V)
29 VDD P Power supply for MIPI circuit and digital circuit    (1.8V)
30 VCOM P Common Voltage
