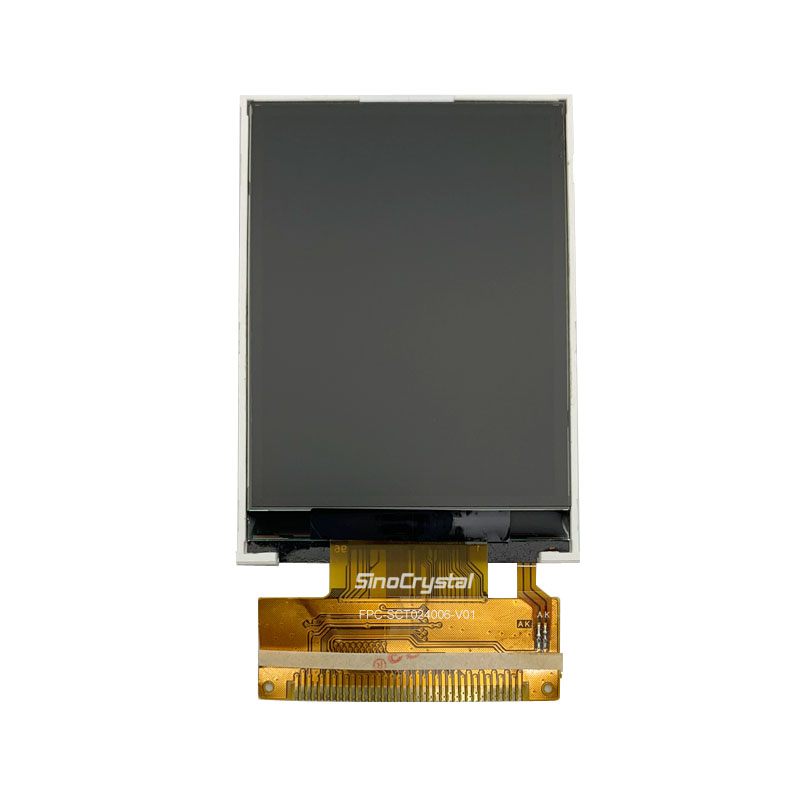

2.4 ” TFT LCD，240*320，MCU ，ILI9341 IC
SCT024006-V01 is a 2.4” TFT LCD Display with 240RGB*320 resolution, it built in with ILI9341 IC, and it supports MCU interface, 36 PIN, 12 o’clock View direction.
DESCRIPTION

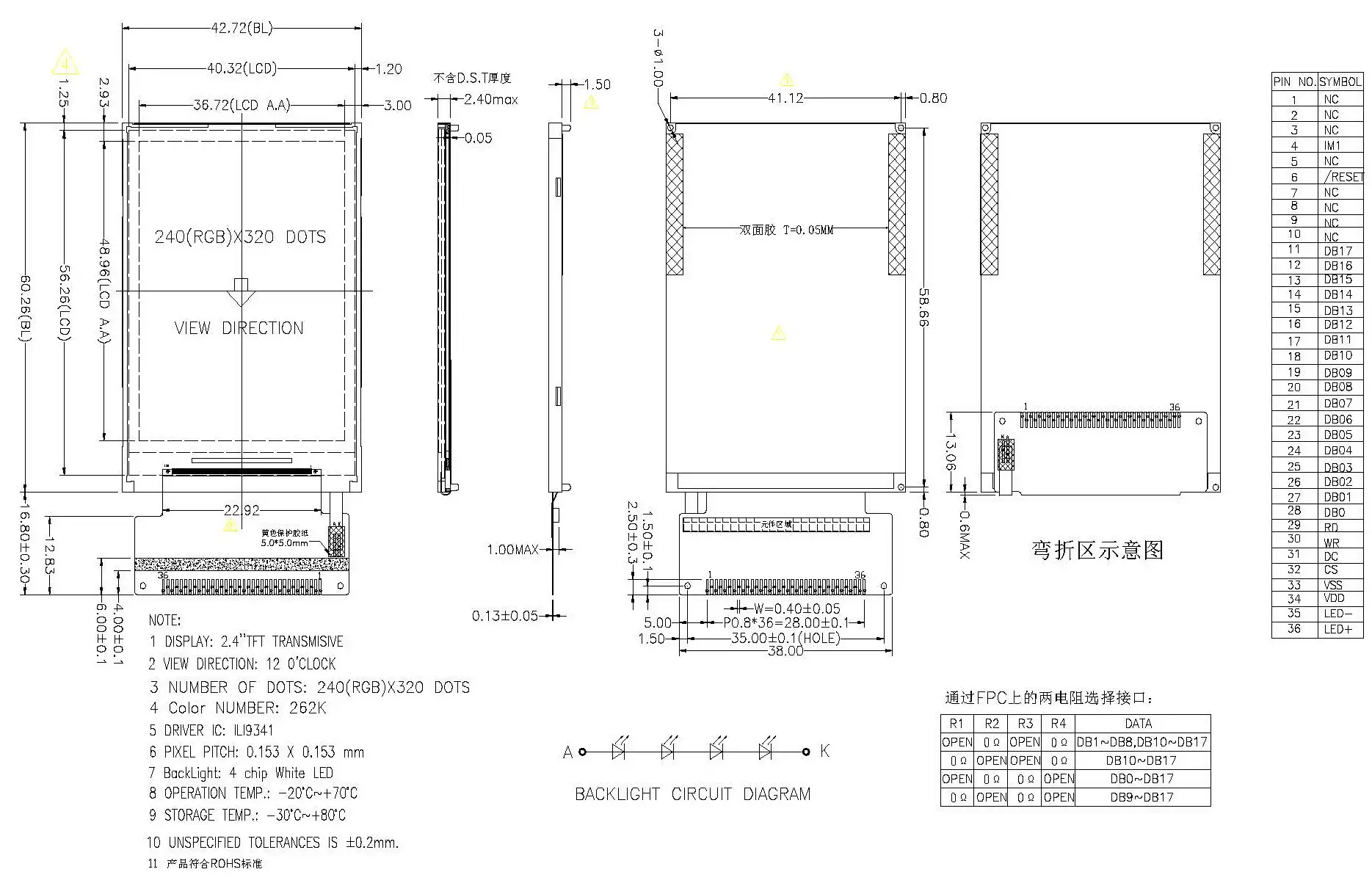

Drawing
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 3.55 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | MCU | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | LED x 4 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
|---|---|---|---|
| 1–3 | NC | – | No use |
| 4 | IM1 | H/L | MCU Interface Mode Select, IM1 has been set to 0 |
| 5 | NC | – | No use |
| 6 | /RESET | H/L | Reset signal |
| 7–10 | NC | – | No use |
| 11–28 | D17 – D0 | H/L | Data bus , Fix to VSS level when not in use D[17:10] and D[8:1] used |
| 29 | RD | H/L | Read Signal |
| 30 | WR | H/L | Write Signal |
| 31 | DC | H/L | selector of command or parameter |
| 32 | CS | H/L | Chip Select |
| 33 | GND | 0V | Ground |
| 34 | VDD | 2.8-3.2V | Power supply |
| 35 | K | – | LED light, cathode |
| 36 | A | – | LED light, anode |
