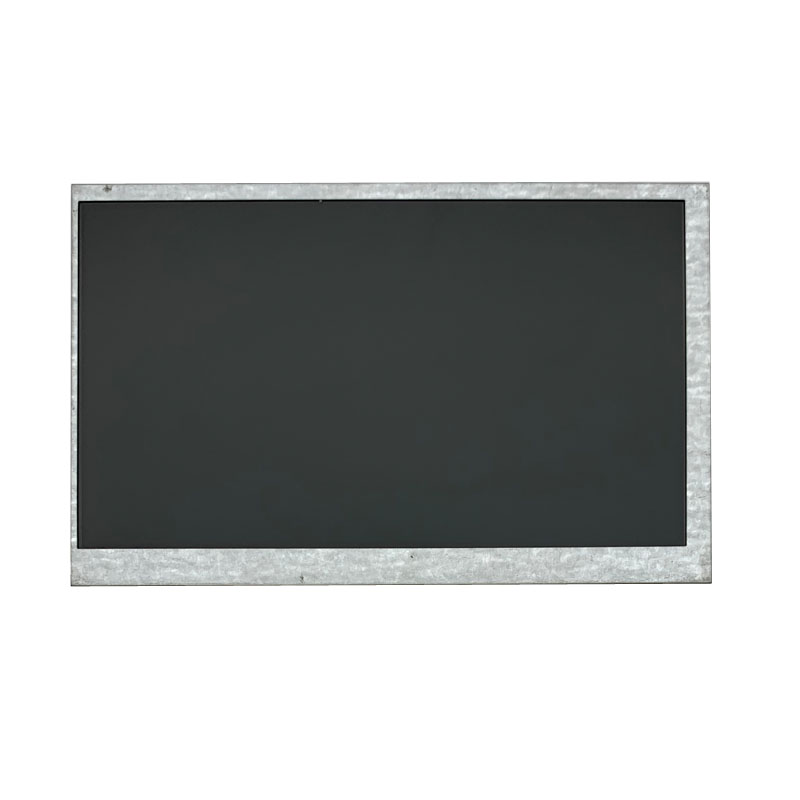

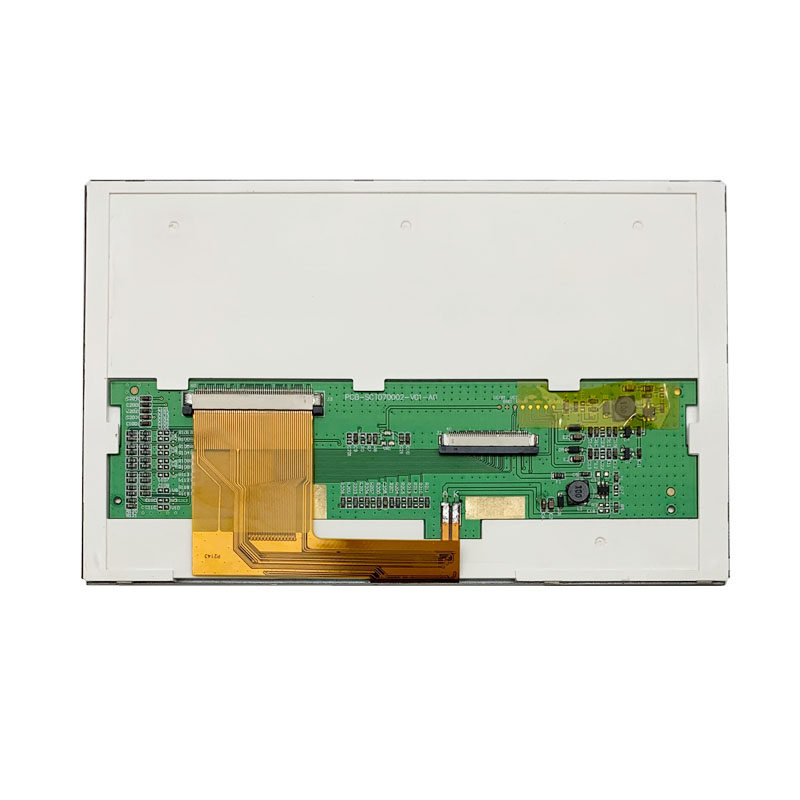

7英寸TFT ，RTP触摸，800*480分辨率，RGB接口
DESCRIPTION
Electrical Characteristics
| Item | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|
| Linearity | -1.5 | – | 1.5 | % | Analog X and Y directions |
| Terminal resistance | 200 | – | 400 | W | Y(Glass side) |
| 200 | – | 800 | W | X(Film side) | |
| Insulation resistance | 20 | – | – | MW | DC 25V |
| Voltage | – | 5.0 | 7.0 | V | DC |
| Response time | – | 15 | – | ms | |
| Transparency | – | 80 | – | % | Non-glare |
Mechanical Reliability Charateristics
| Item | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|
| Activation force | – | 80 | g | (1) | |
| Hitting Durability | 1,000,000 | – | – | times | (2) |
| Sliding Durability | 100,000 | times | |||
| Surface hardness | 3 | – | – | H | JIS K5400 |
General Specification
| Item | Specification | Unit |
|---|---|---|
| Screen Size | 7 inch tft lcd display | Diagonal |
| Display Resolution | 800 (H) x 480 (V) | Pixel |
| Active Area | 153.6 (H) x 86.64 (V) | mm |
| Outline Dimension | 165.00 (H) x 104.00 (V) x 6.5 (T) | mm |
| Display Mode | Normally white mode/ Transmissive | — |
| Surface Treatment | Anti-glare(AG) | — |
| Pixel Arrangement | R,G,B Vertical Stripe | — |
| Pixel Size | 192 x 180.5 | um |
| Display Color | Full Colors | — |
| Viewing Direction | 6 o’clock | — |
| Input Interface | Digital RGB (6bits/color) Data Transfer | — |

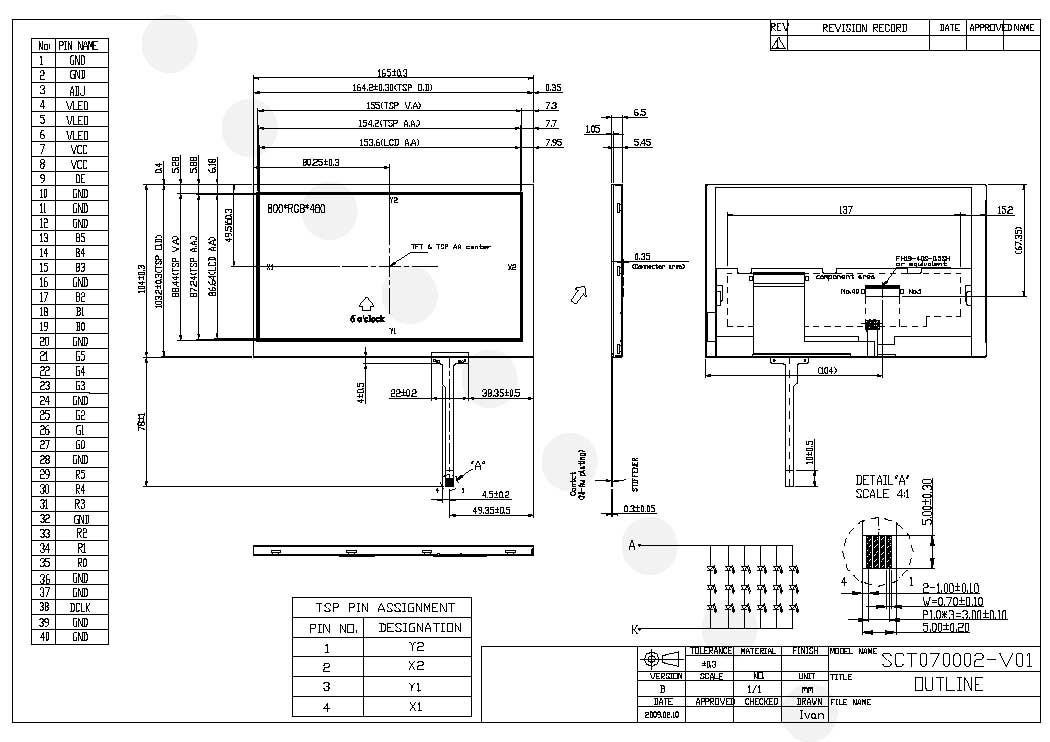

Interface Definition
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | GND | P | Ground |
| 2 | GND | P | Ground |
| 3 | ADJ | I | Back-light Dimming control |
| 4 | VLED | P | Power Supply LED voltage |
| 5 | VLED | P | Power Supply LED voltage |
| 6 | VLED | P | Power Supply LED voltage |
| 7 | VCC | P | Power Supply Logic voltage |
| 8 | VCC | P | Power Supply Logic voltage |
| 9 | DE | I | Data Enable Timing Signal |
| 10 | GND | P | Ground |
| 11 | GND | P | Ground |
| 12 | GND | P | Ground |
| 13 | B5 | I | Blue data signal (MSB) |
| 14 | B4 | I | Blue data signal |
| 15 | B3 | I | Blue data signal |
| 16 | GND | P | Ground |
| 17 | B2 | I | Blue data signal |
| 18 | B1 | I | Blue data signal |
| 19 | B0 | I | Blue data signal (LSB) |
| 20 | GND | P | Ground |
| 21 | G5 | I | Green data signal (MSB) |
| 22 | G4 | I | Green data signal |
| 23 | G3 | I | Green data signal |
| 24 | GND | P | Ground |
| 25 | G2 | I | Green data signal |
| 26 | G1 | I | Green data signal |
| 27 | G0 | I | Green data signal (LSB) |
| 28 | GND | P | Ground |
| 29 | R5 | I | Red data signal (MSB) |
| 30 | R4 | I | Red data signal |
| 31 | R3 | I | Red data signal |
| 32 | GND | P | Ground |
| 33 | R2 | I | Red data signal |
| 34 | R1 | I | Red data signal |
| 35 | R0 | I | Red data signal (LSB) |
| 36 | GND | P | Ground |
| 37 | GND | P | Ground |
| 38 | DCLK | I | Data Clock |
| 39 | GND | P | Ground |
| 40 | GND | P | Ground |
