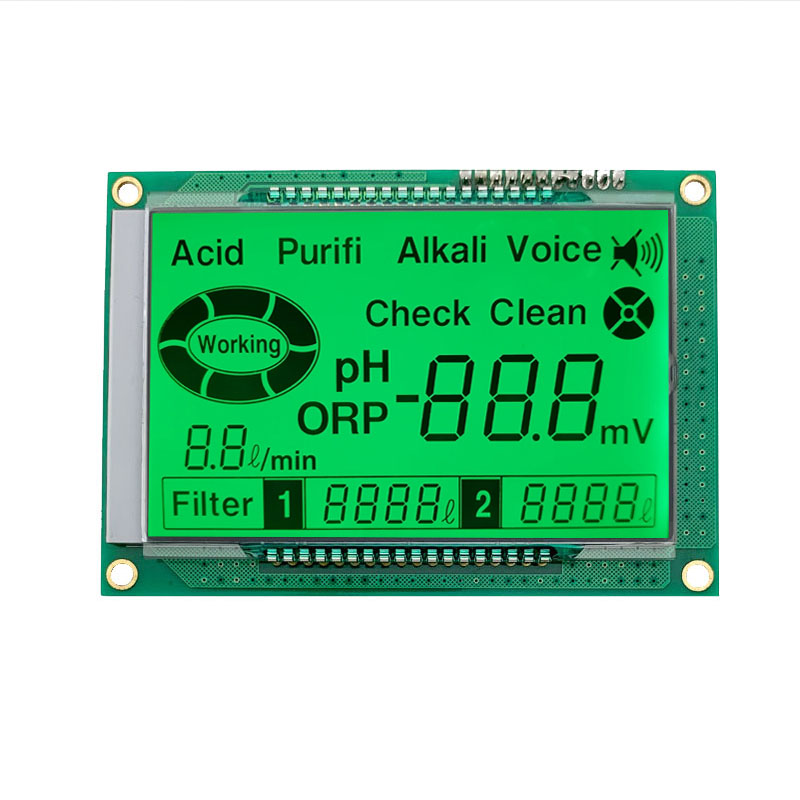

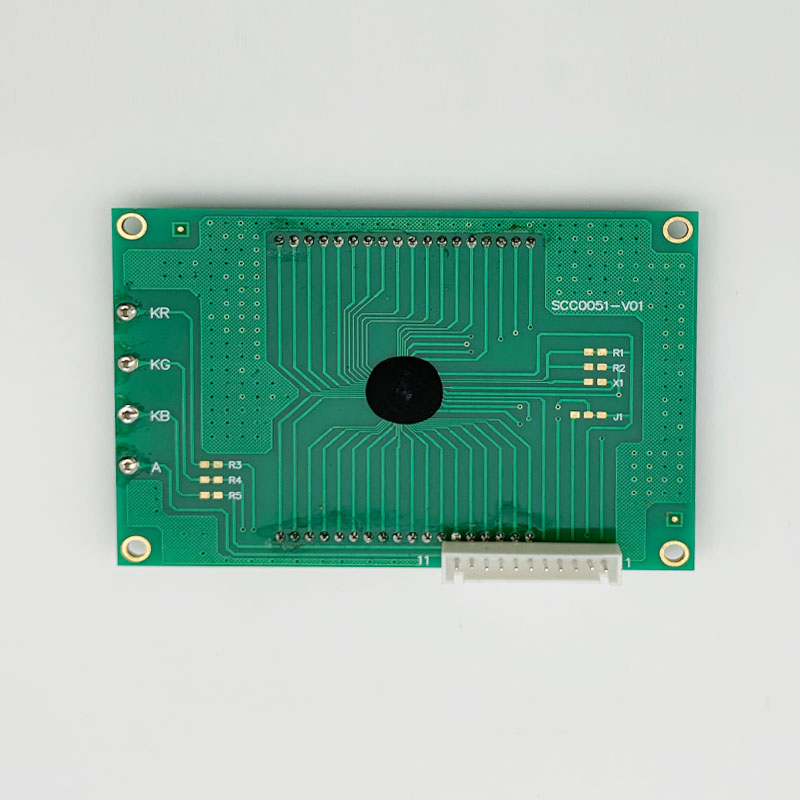

SCC0051-V01 is a Customized Segment Mono LCD Display, it built in with HT1621 Driver IC, 11 PIN, 12 o’clock View direction.
DESCRIPTION
Basic Information
LCD Type: TN Postitive Transmissive
Number of Graphic: Segment
Outline Dimension: 100.00*70.00*1.60
View area: 80.00*50.00
View Direction: 12 o’clock
PIN: 16
Backlight: White LED

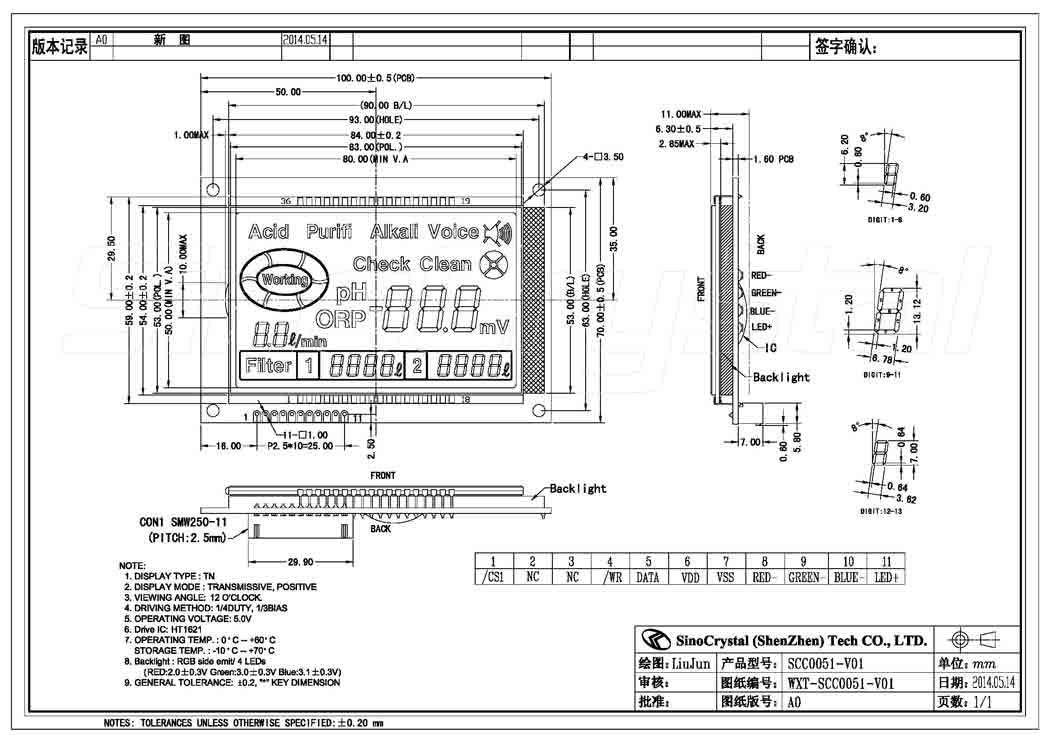

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | SEGMENT | Mm |
| MODULE DIMENSION | 100.00*70.00*1.60 | Mm |
| VIEWING AREA | 80.00*50.00 | Mm |
| DOT SIZE | – | Mm |
| DOT PITCH | – | Mm |
| LCD TYPE | TN/ POSITIVE/TRANSMISSIVE | |
| DUTY | 1/4 | |
| VIEWING DIRECTION | 12:00 | o’clock |
| BACK LIGHT TYPE | SIDE LIT LED | |
| BACK LIGHT COLOR | RGB | |
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description |
| 1 | /CS1 | H/L | Chip selection input |
| 2 | NC | – | No used |
| 3 | NC | – | No used |
| 4 | /WR | H/L | Write clock input |
| 5 | DATA | H/L | Serial data input/output |
| 6 | VDD | – | Supply voltage for logic |
| 7 | VSS | – | Ground |
| 8 | LED+ | — | Backlight anode |
| 9 | RED- | Backlight cathode | |
| 10 | GREEN- | Backlight cathode | |
| 11 | BLUE- | — | Backlight cathode |
