DESCRIPTION
Specification

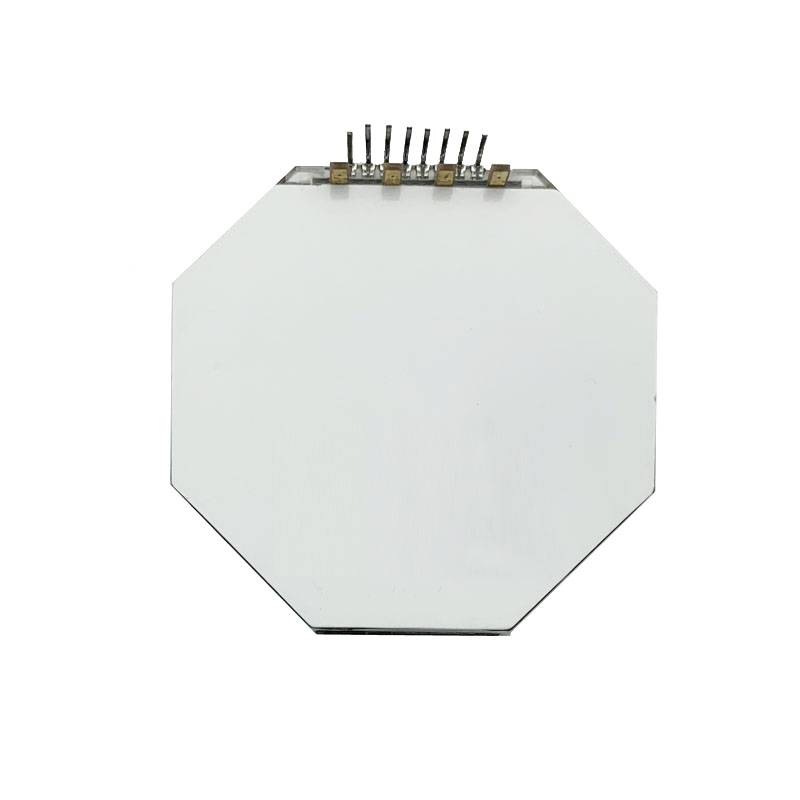

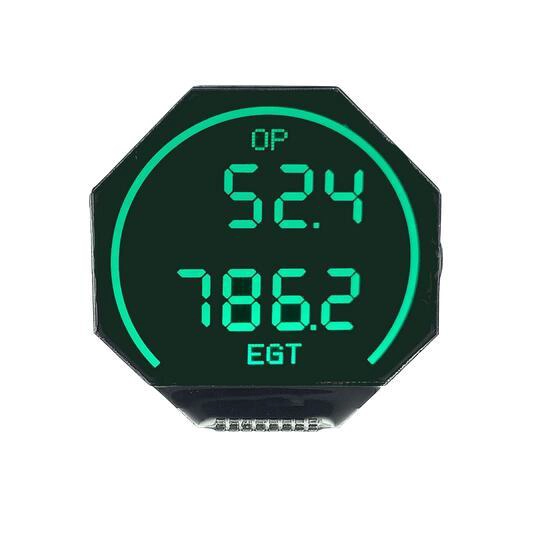

SCC0055 is a small size Octagonal TN Segment Mono LCD Display. which is customized display.

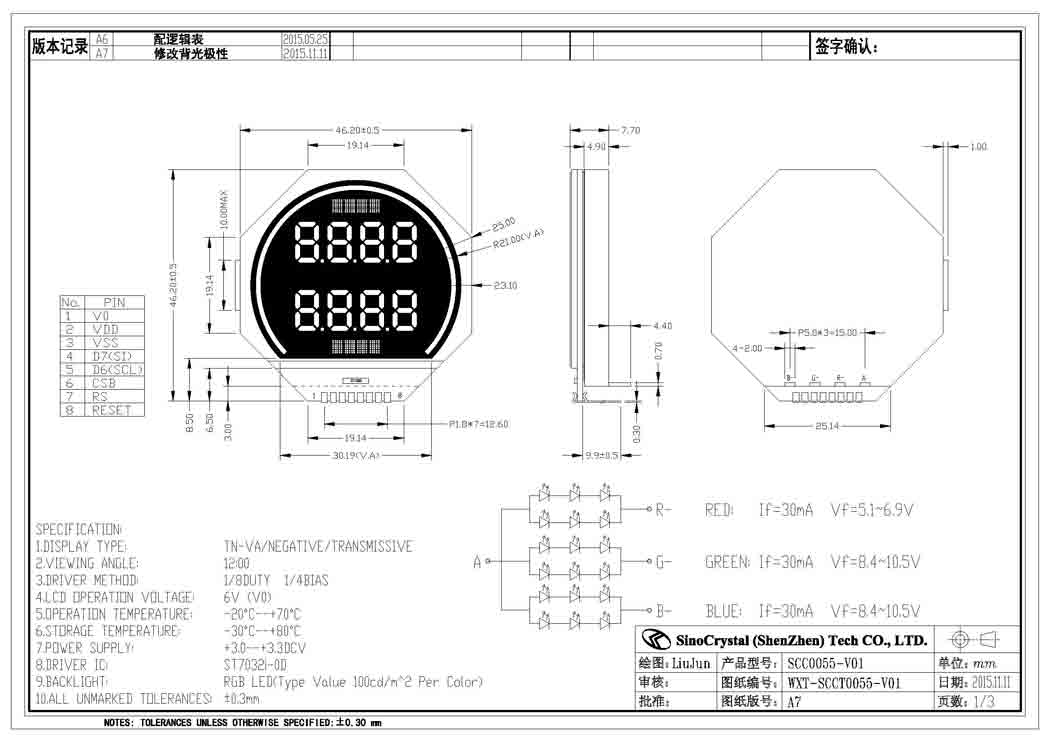

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF CHARACTER | 4×2 + ICON | Mm |
| MODULE DIMENSION | 46.2×46.2×7.7 | Mm |
| VIEWING AREA | 42.0×35.6 | Mm |
| DOT SIZE | 0.38×0.35 | Mm |
| DOT PITCH | 0.42×0.39 | Mm |
| LCD TYPE | TN-VA/NEGATIVE/TRANSMISSIVE | |
| DUTY | 1/8 | |
| VIEWING DIRECTION | 0.5 | o’clock |
| BACK LIGHT TYPE | SIDE LIT LED | |
| BACK LIGHT COLOR | RGB COLOR | |
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description |
| 1 | V0 | — | Supply voltage for LCD |
| 2 | VDD | — | Supply voltage for logic |
| 3 | VSS | — | Ground |
| 4 | D7(SI) | H/L | serial data input |
| 5 | D6(SCL) | H/L | the serial clock input |
| 6 | CSB | H/L | Chip select signal |
| 7 | RS | H/L | Register selection input H : display data. L : control data |
| 8 | RESET | H/L | Chip reset signal |
Our company specializes in the design, development and production of LCD
screens and display modules. Products are mainly used in temperature and
humidity meters, electronic scales, multimeters, smart meters, water meters,
gas meters, bank note counters, electronic safes, cash registers, massagers,
treadmills, fat meters, air conditioners, audio, control boards, etc.
Our extensive experience in customized products
1. Size: customized according to customer requirements
2. Type: TN / HTN / STN / FSTN / VA (EBTN)
3. Types of working temperature: 0-50 degrees, -10-60 degrees, -20-70
degrees, -40-85 degrees
4. Attribute: positive display / negative display,
5. Types of polarizers: fully transparent, semi-transparent and
reflective
6. Connection method: metal pins, zebra strips, hot pressed paper and others
7. Viewing angle: IPS, 6 o’clock direction, 12 o’clock direction
and others
8. Voltage: customized
9. LCD screen glass thickness: customized
