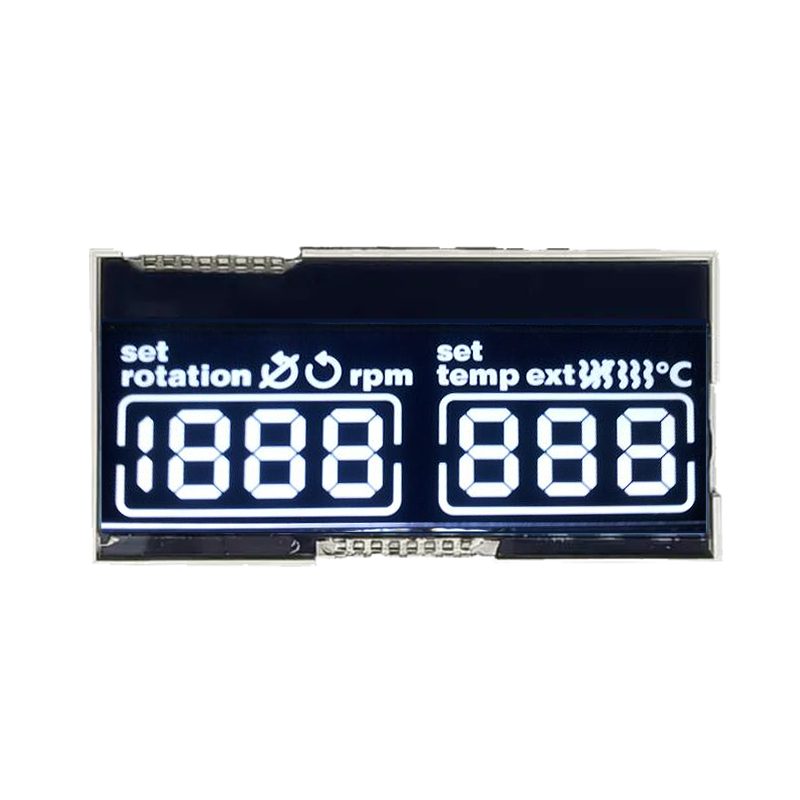

段码屏LCD VA COG显示模块 6点视角 白色LED背光

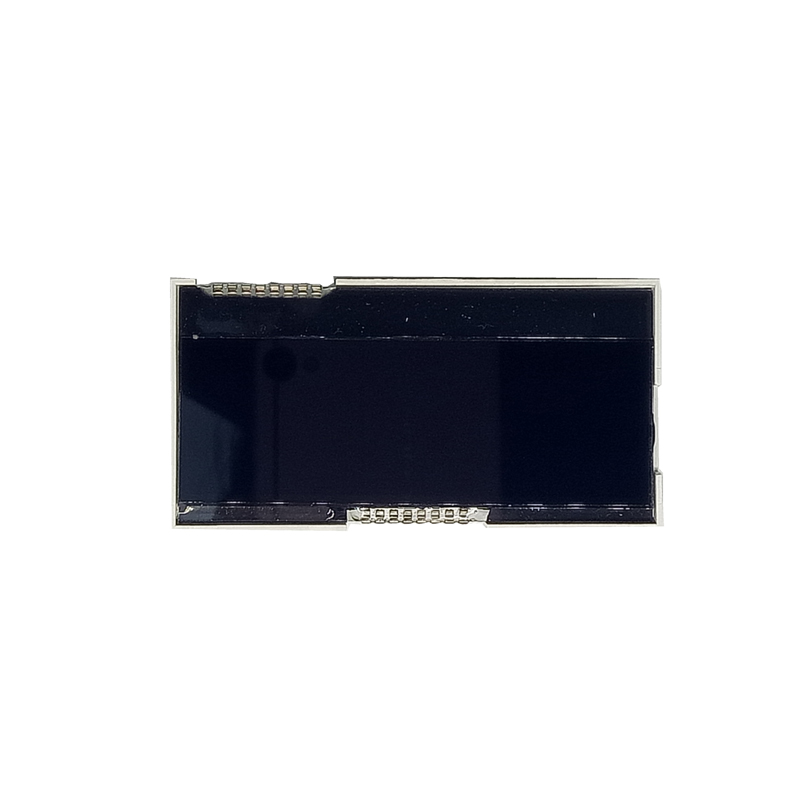

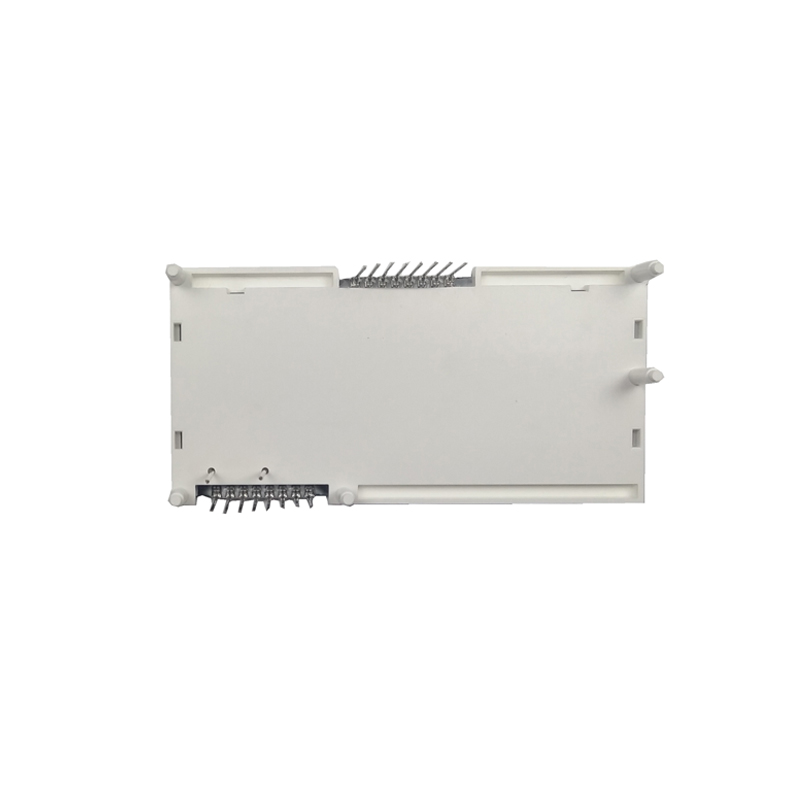

SCC0024-V01 is a Mono Graphic LCD Display, it built in with IST3042CA1 IC, 8 PIN, 6 o’clock View direction.
DESCRIPTION
Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | SEGMENT | Mm |
| MODULE DIMENSION | 70.0×35.0×13.9 | Mm |
| EFFECTIVE DISPLAY AREA | 65.0×21.0 | Mm |
| DOT SIZE | – | Mm |
| DOT PITCH | – | Mm |
| LCD TYPE | TN(VA)/NEGATIVE/TRANSMISSIVE | |
| DUTY | STATIC | |
| VIEWING DIRECTION | 6 | o’clock |
| BACK LIGHT TYPE | SIDE LIT LED | |
| BACK LIGHT COLOR | WHITE | |
| APPROX. WEIGHT | TBD | G |
Interface Definition
| NO | SYMBOL | LEVEL | FUNCTION |
| 1 | VLCD/RST | — | Power for LCD and Reset signal |
| 2 | VDD | — | Power supply |
| 3 | GND | — | Ground |
| 4 | DATA_IN | H/L | Data signal |
| 5 | CLOCK_IN | H/L | Shift clock signal |
| 6 | LOAD_IN | H/L | Load signal |
| 7 | SEG_TEST_IN | H/L | Segment test signal |
| 8 | BLACK_IN | H/L | Black signal |
