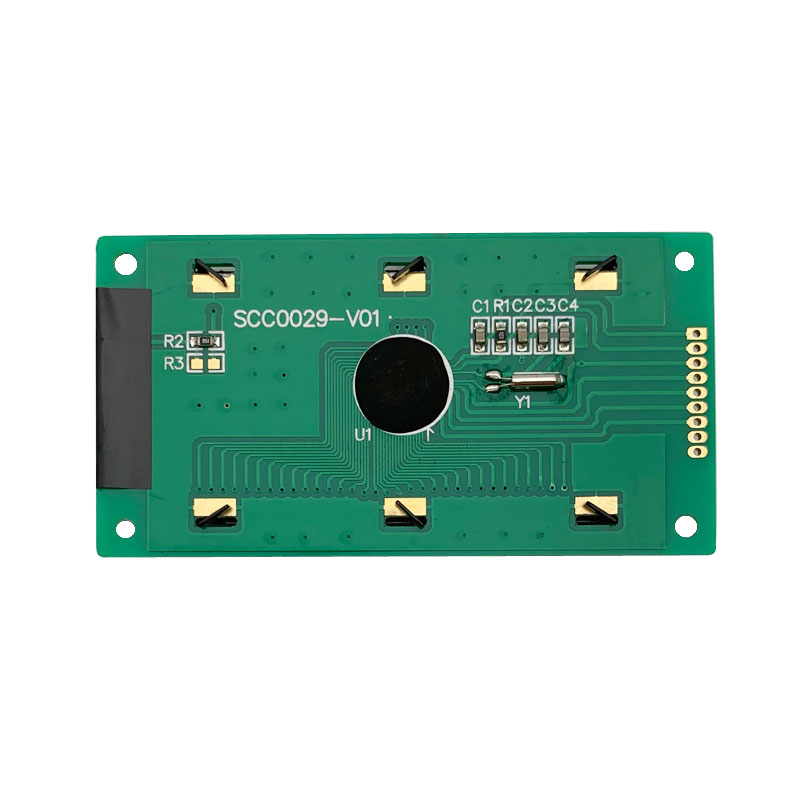

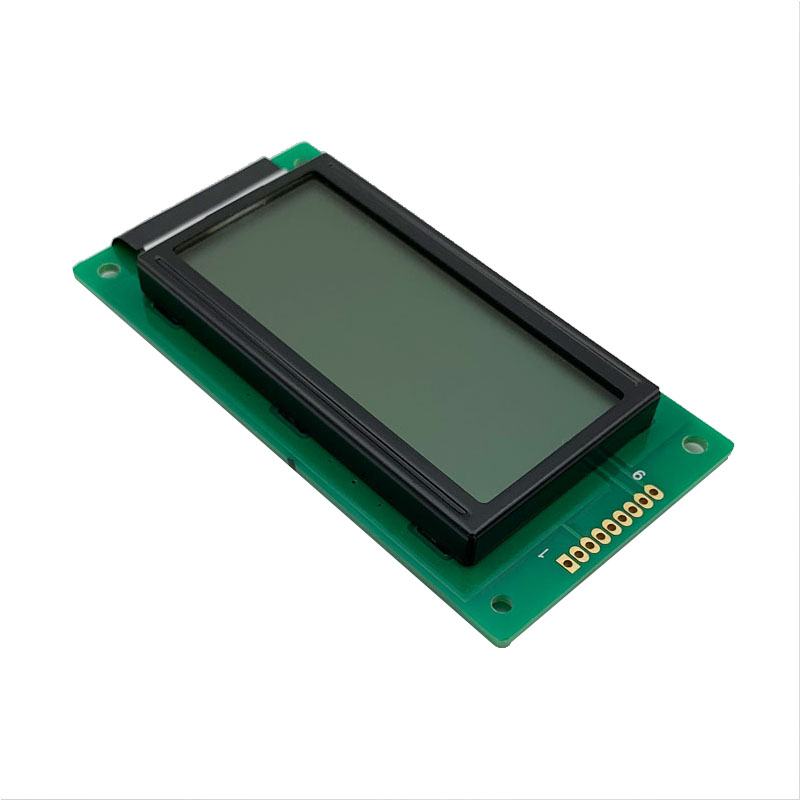

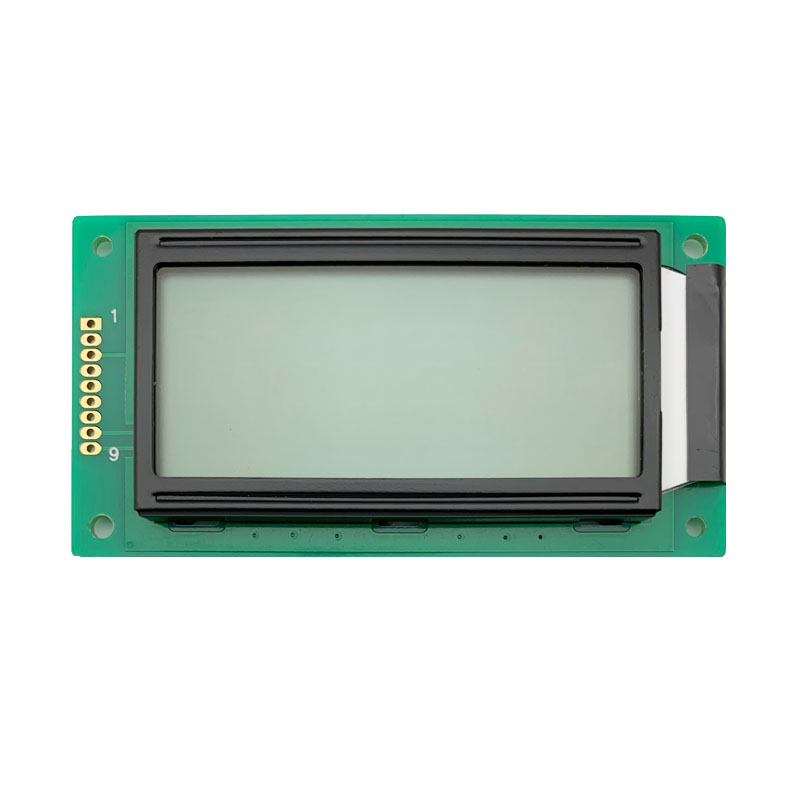

SCC0029-V01 is a Customized Segment Mono LCD Display, it built in with 8 PIN, 12 o’clock View direction.
DESCRIPTION
Basic Information
LCD Type: HTN Postitive Transflective
Number of Graphic: Segment
Outline Dimension: 84*44*9.8
View area: 59.00*26.00
View Direction: 12 o’clock
PIN: 9
Backlight: White LED

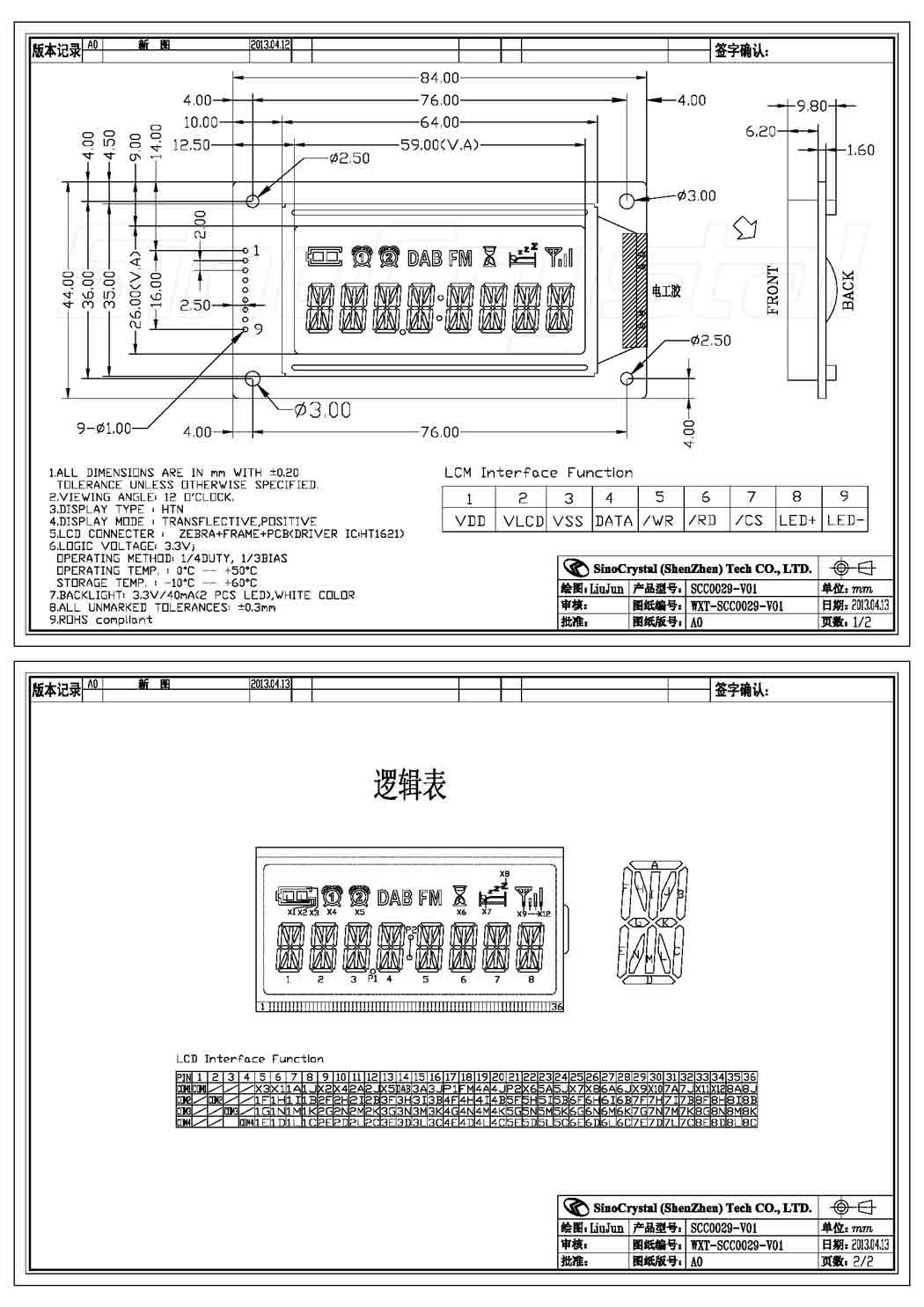

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | SEGMENT | Mm |
| MODULE DIMENSION | 84.0×44.0×9.8(MAX) | Mm |
| VIEWING AREA | 59.0×26.0 | Mm |
| DOT SIZE | – | Mm |
| DOT PITCH | – | Mm |
| LCD TYPE | HTN/ POSITIVE/TRANSFLECTIVE | |
| DUTY | 1/4 | |
| VIEWING DIRECTION | 0.5 | o’clock |
| BACK LIGHT TYPE | SIDE LIT LED | |
| BACK LIGHT COLOR | WHITE | |
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description |
| 1 | VDD | – | Supply voltage for logic |
| 2 | VLCD | – | Supply voltage for LCD |
| 3 | VSS | – | Ground |
| 4 | DATA | H/L | Serial data input/output |
| 5 | /WR | H/L | Write clock input |
| 6 | /RD | H/L | Read clock input |
| 7 | /CS | H/L | Chip selection input |
| 8 | LED+ | — | Backlight anode |
| 9 | LED- | — | Backlight cathode |
