定制段码屏 LCD显示器STN COB液晶屏

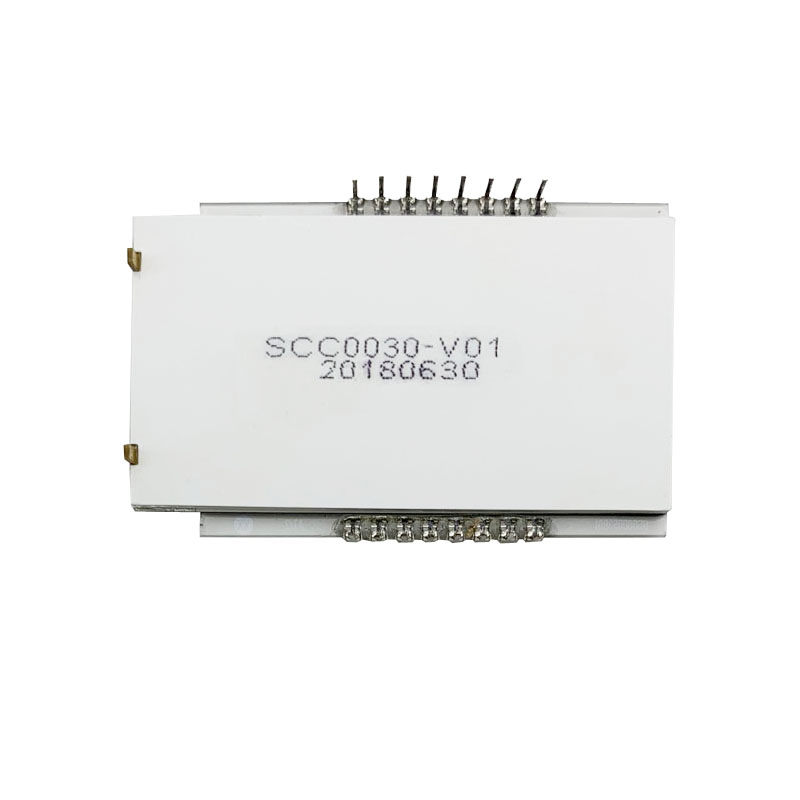

SCC0030-V01 is a Customized Segment Mono LCD Display, it built in with 16 PIN, 12 o’clock View direction.
DESCRIPTION
Basic Information
LCD Type: STN-Grey Postitive Transflective
Number of Graphic: Segment
Outline Dimension: 52.0×33.0×5.1
View area: 43.00*25.00
View Direction: 12 o’clock
PIN: 16
Backlight: White LED

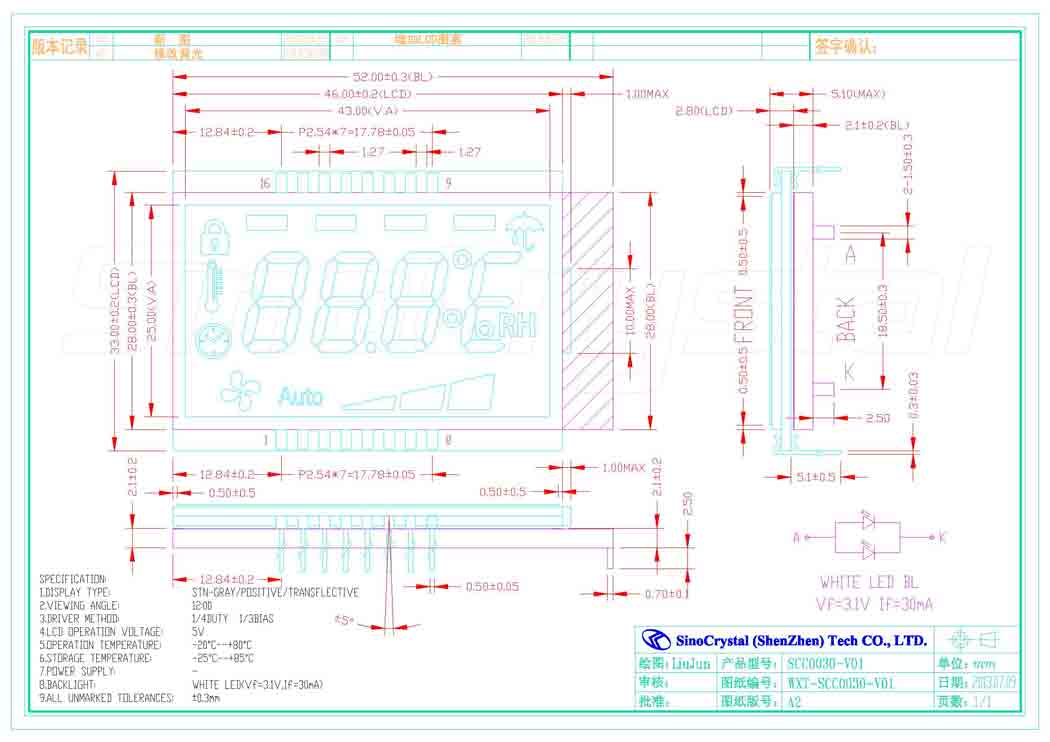

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | SEGMENT | Mm |
| MODULE DIMENSION | 52.0×33.0×5.1(MAX) | Mm |
| VIEWING AREA | 43.0×25.0 | Mm |
| DOT SIZE | – | Mm |
| DOT PITCH | – | Mm |
| LCD TYPE | STN-Grey/ POSITIVE/TRANSFLECTIVE | |
| DUTY | 1/4 | |
| VIEWING DIRECTION | 12:00 | o’clock |
| BACK LIGHT TYPE | SIDE LIT LED | |
| BACK LIGHT COLOR | WHITE | |
| APPROX. WEIGHT | TBD | G |
