12232单色图形，STN，122 * 32分辨率，8位总线，接口MPU

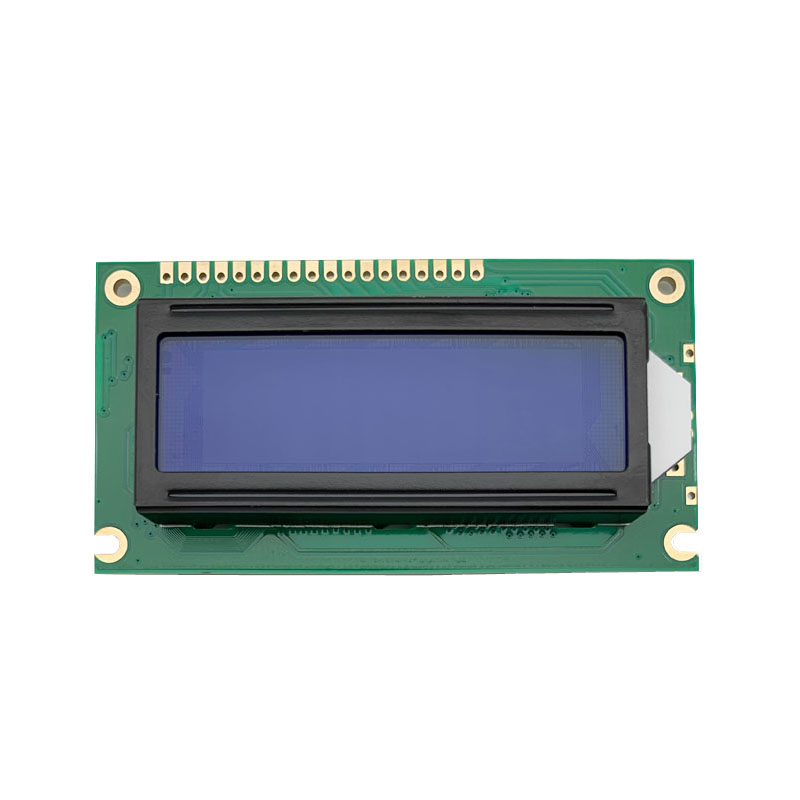

SC12232001-V01是分辨率为122 * 32的图形LCD显示器，内置SED1520或eqv IC，18 PIN，6点钟方向。
DESCRIPTION
General Specification
| Item | Standard Value | Unit |
| Display Type | 122 x 32 DOTS | Mm |
| LCD Type | STN(BLUE),NEGATIVE,TRANSMISSIVE | Mm |
| Driver Condition | LCD Module : 1/32 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O’Clock | Mm |
| Backlight Type | SIDE WHITE | Mm |
| Interface | 8BIT bus MPU interface | – |
| Driver IC | SED1520 or eqv | – |

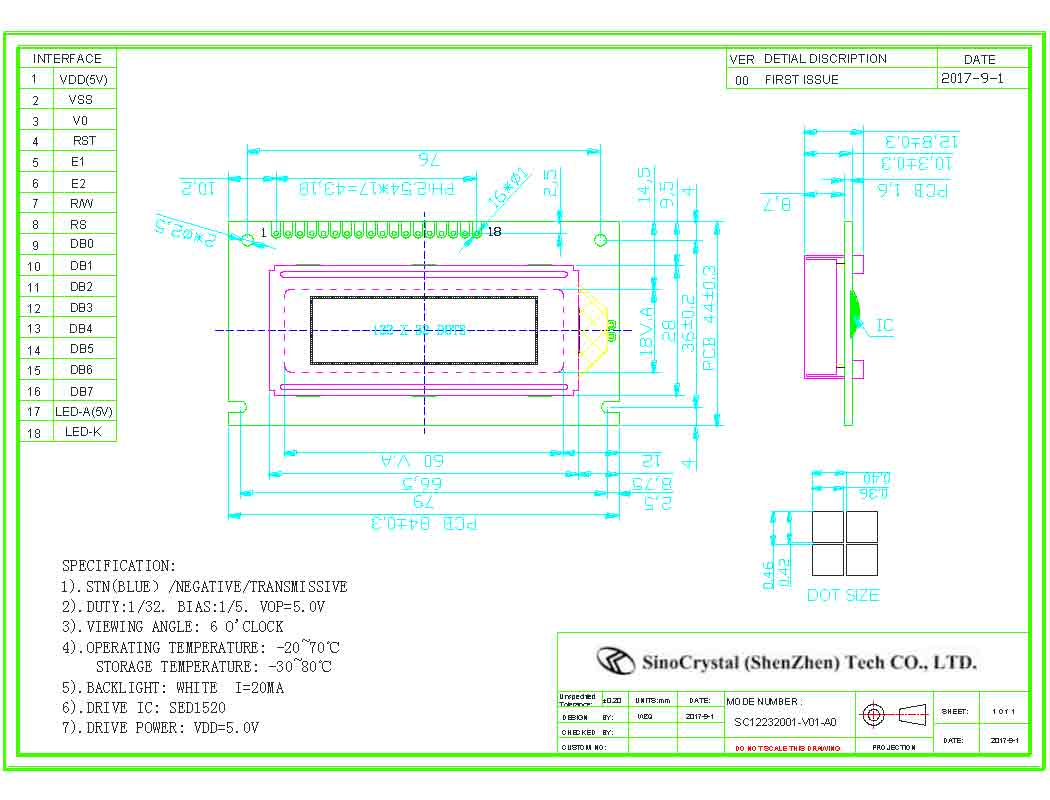

| Outline Dimension | 84(L) *44(W) * 12.8(T) | mm |
| Viewing Area | 60(L) * 18( W) | mm |
| Dot Size (W*H) | 0.36*0.42mm | mm |
| Dot Pitch (W*H) | 0.40*0.46 mm | mm |

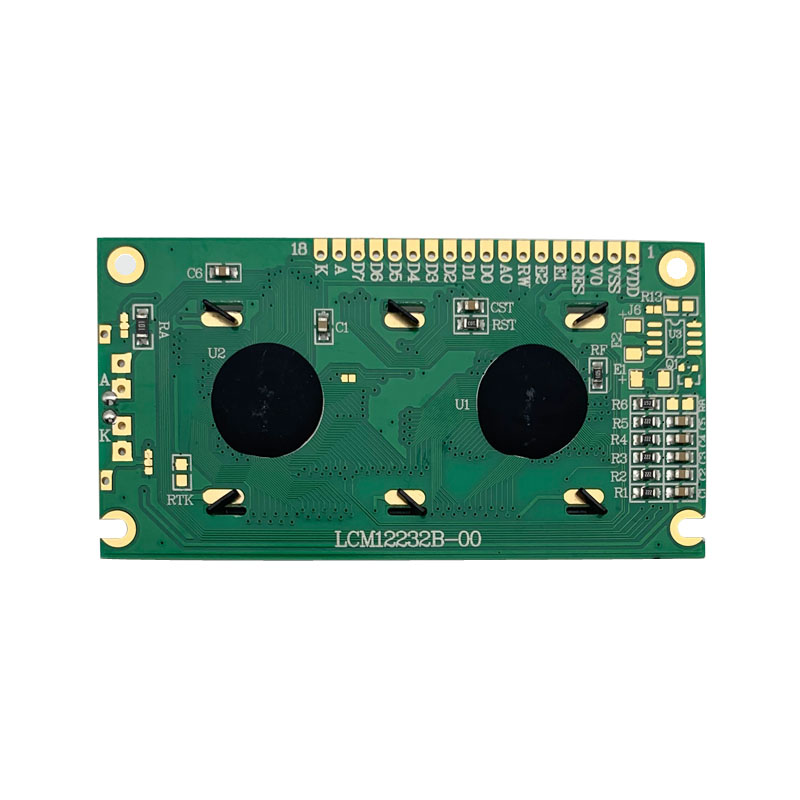

Interface Definition
| Pin No. | Symbol | Function | |
| 1 | VDD | Power supply input for driver IC (+5V) | |
| 2 | VSS | Ground (0V) | |
| 3 | VO | LCD driver supply voltages,Contrast Adjust | |
| 4 | RST | Reset signal | |
| 5 | E1 | Enable signal IC1(U1) | |
| 6 | E2 | Enable signal IC2(U2) | |
| 7 | RW | Read write control 0:write 1:read | |
| 8 | RS | 0:DB0-DB7= Command 1: DB0-DB7= Data | |
| 9–16 | DB0~DB7 | data bus for 8 bit interface | |
| 17 | LED+ | BACKLIGHT+ (5V) | |
| 18 | LED- | BACKLIGHT- (0V) | |
