1602单色字符LCD，AIP31066 IC，单色LCD显示器

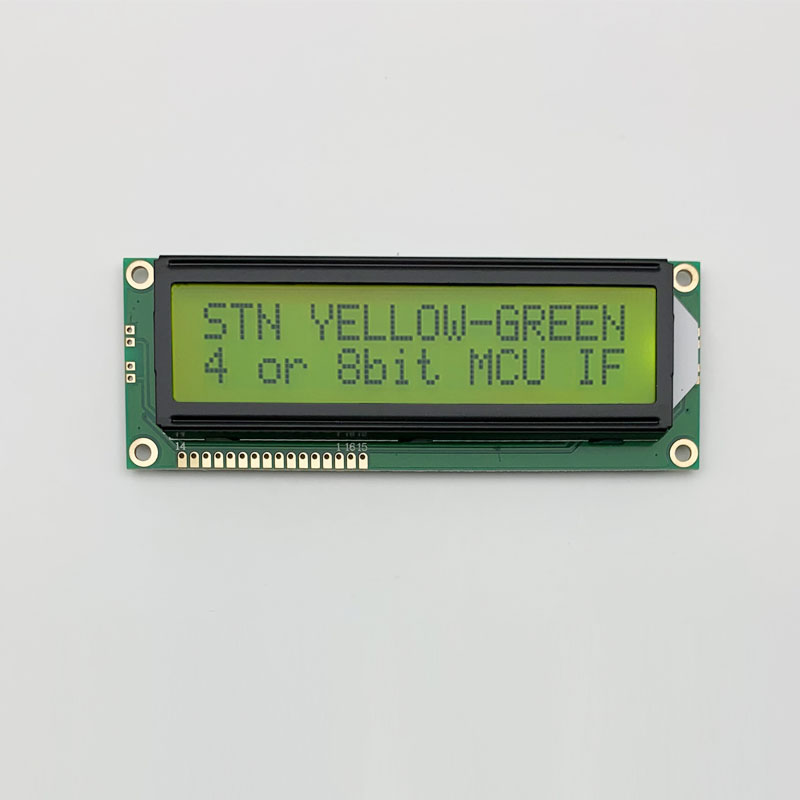

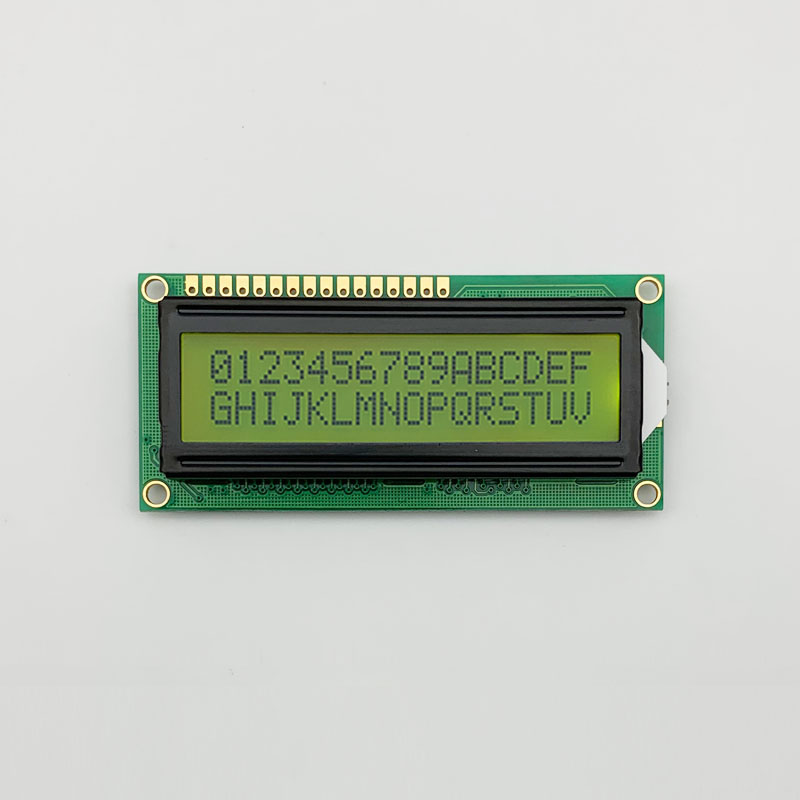

SC1602003-V01是一款分辨率为16 * 2的字符型LCD显示器，内置AIP31066 IC，支持8位MPU接口，16 PIN，6点钟观看方向。
DESCRIPTION
General Specification
| Item | Standard Value | Unit |
| Display Type | 16 Characters x 2 Lines | Mm |
| LCD Type | STN,POSITIVE(Y-G),TRANSFLECTIVE | Mm |
| Driver Condition | LCD Module : 1/16 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O’Clock | Mm |
| Backlight Type | SIDE Y-G | Mm |
| Interface | 8-bit MPU interface | – |
| Driver IC | AIP31066 | – |

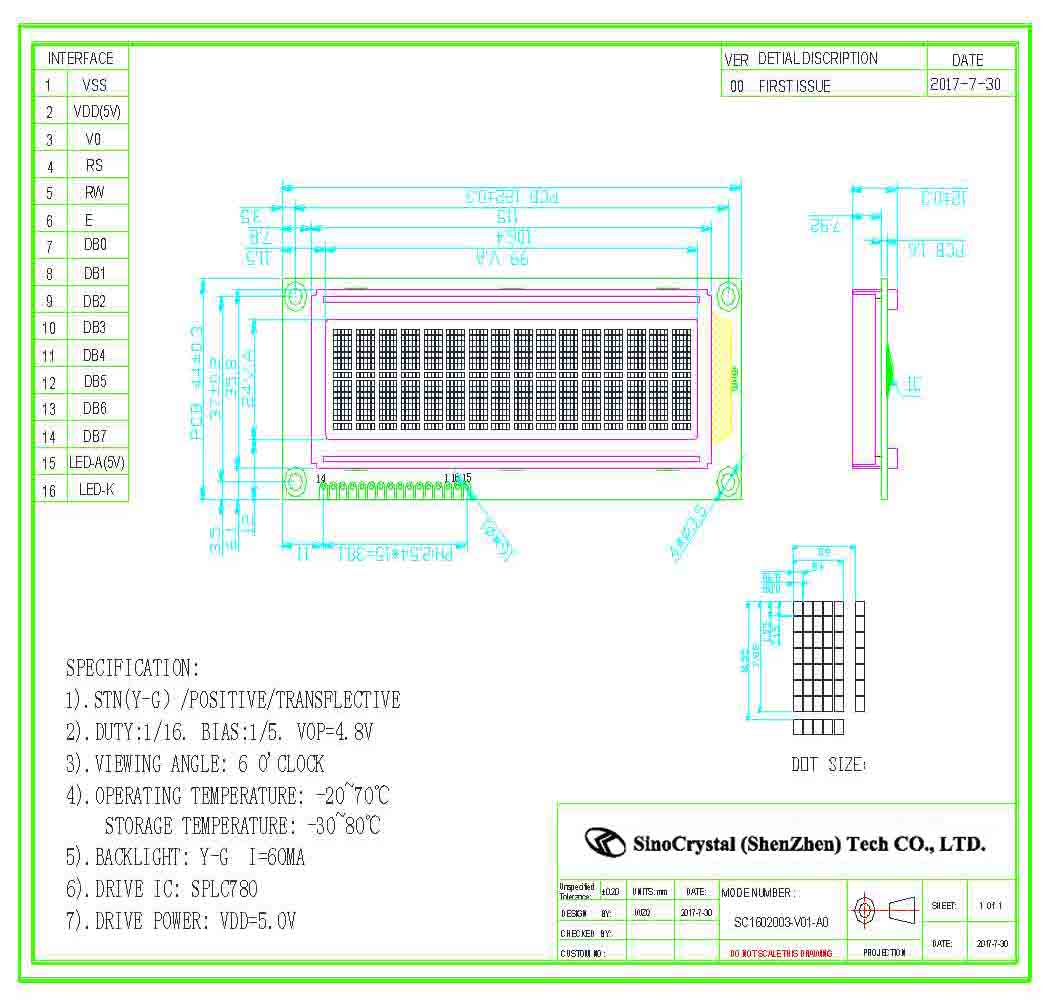

| Outline Dimension | 122(L) * 44(W) * 12.3(T) | mm |
| Viewing Area | 99(L) * 24( W) | mm |
| Dot size | 0.88(W) ´ 1.05(H) | mm |
| Dot pitch | 0.98(W) ´ 1.15(H) | mm |
| Character size | 4.8(W) ´ 7.95(H) | mm |
Interface Definition
| Pin No. | Symbol | Function |
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |
