0.96英寸,IPS TFT-LCD,80 * 160,ST7735S

0.96英寸,IPS TFT-LCD,80 * 160,ST7735S

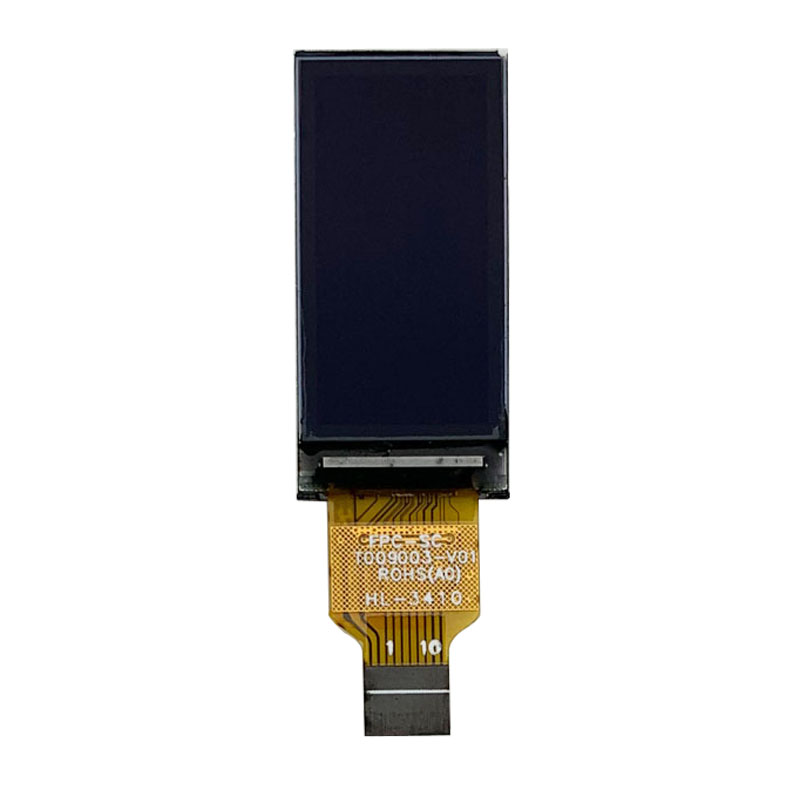

SCT009003-V01是0.96英寸迷你TFT LCD显示屏,分辨率为80 * 160。此模块内置ST7735S IC。它是纵向模式LCD模块。

SKU: SCT009003-V01
Type: TFT彩屏
Mode: IPS
Product No.: SCT009003-V01
Size: 0.96''
Resolution: 80*160
Outline Dimension: 27.95*13.54*1.85
Active Area: 21.7*10.8
Interface: SPI
IC: ST7735S
Brightness: 300Cd/m2
Touch Screen: No
View Direction: IPS
Pin No.: 10
Shape: 方形

DESCRIPTION

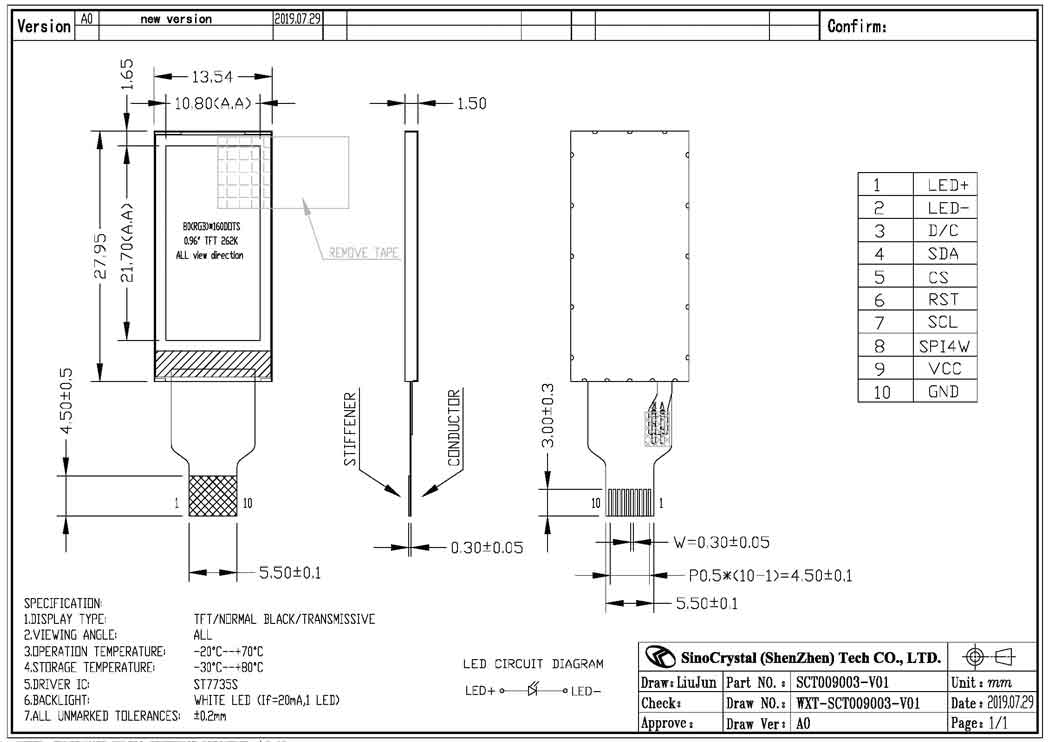

Drawing





General Specification

Item Nominal Dimension Unit
 Dot Matrix 80 x RGB x 160 Dots
 Module Size ( W×H×T ) 13.54 x 27.95 x 1.5 mm.
 Active Area ( W×H ) 10.80 x 21.70 mm.
 Pixel arrangement RGB Stripe mm.
 Dot Pitch ( W×H ) 0.135 x 0.1356 mm.
 Color depth 262K(MAX) colors
 Interface SPI
 Driving IC ST7735S
 Operating temperature -20 ~70 ºC
 Storage temperature -30~80 ºC
 LCD Type a-Si TFT
 LCD Mode Normal Black
 Backlight Type LED x 1 PCS



Interface Definition

Pin No Pin Symbol Type Description
1 LED+ P LED light, anode
2 LED- P LED light, cathode.
3 D/C I In 4-line SPI:
-D/CX=’1′: Display Data or Parameter.
-D/CX=’0′: Command Data.
In 3-line SPI: no used
If not used, please fix this pin at GND level
4 SDA I/O Serial data input/output signal
5 CS I Chip Select
6 RESET I Chip reset signal
7 SCL I Serial clock input signal
–   SPI4W=’0′, 3-line SPI Enable.
8 SPI4W I –   SPI4W=’1′, 4-line SPI Enable.
9 VCC P Power supply
10 GND P Ground
