10.1英寸 ，1280×800， IPS， TFT-LCD液晶显示屏
10英寸LCD广告显示屏，方形LCD，TFT LCD显示屏，分辨率1280*800，接口：LVDS Digital，12点可视方向，40PIN。
DESCRIPTION

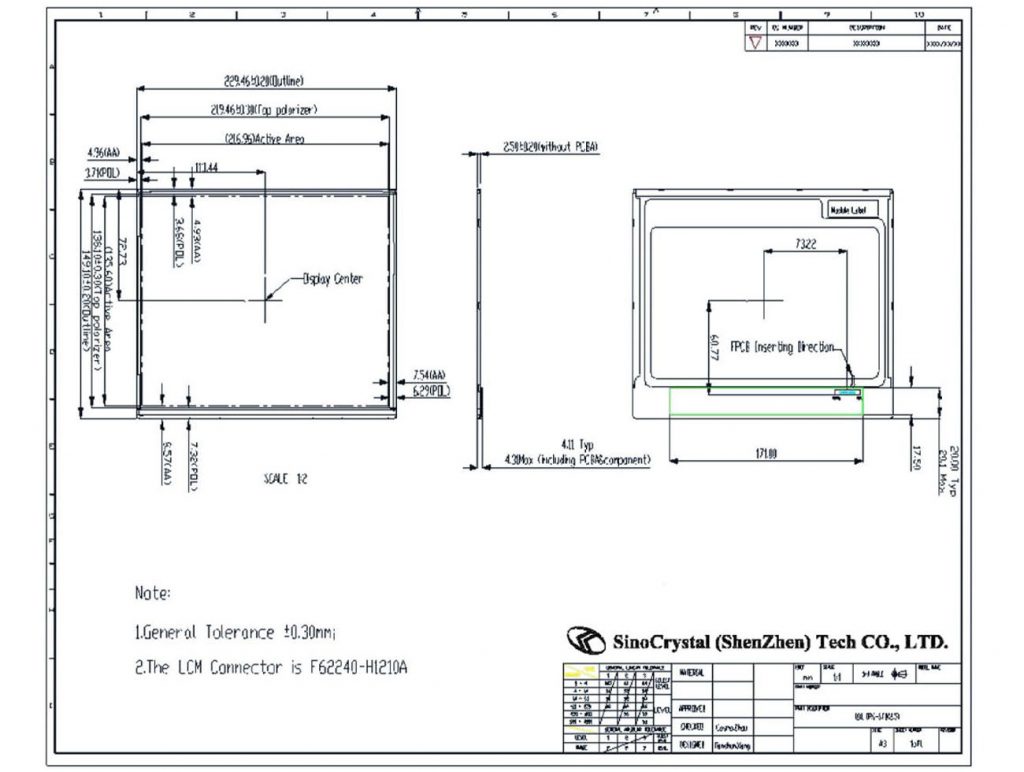

Drawing
General Specification
| Item | Specification | remark |
|---|---|---|
| LCD Size | 10.1 inch(Diaginal) | |
| Driver element | a-Si TFT active matrix | |
| Resolution | 1280x 3(RGB) × 800 | |
| Display Mode | Normally Black | |
| Dot Pitch | 0.0565(w)X0.1695(H)mm | |
| Active Area | 219.96(w)x135.6(H)mm | |
| Panel Size | 229.46(w)x149.1(H)x2.50(D) | Note 1 |
| Surface treatment | HC | |
| Color arrangement | RGB-stripe | |
| Interface | Digital | |
| Panel power consumption | 1W | |
| Weight | TBD |

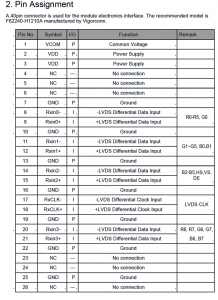

Interface Definition
