1.8 ”TFT SPI接口,128 * 160 ,ST7735S IC

1.8 ”TFT SPI接口,128 * 160 ,ST7735S IC

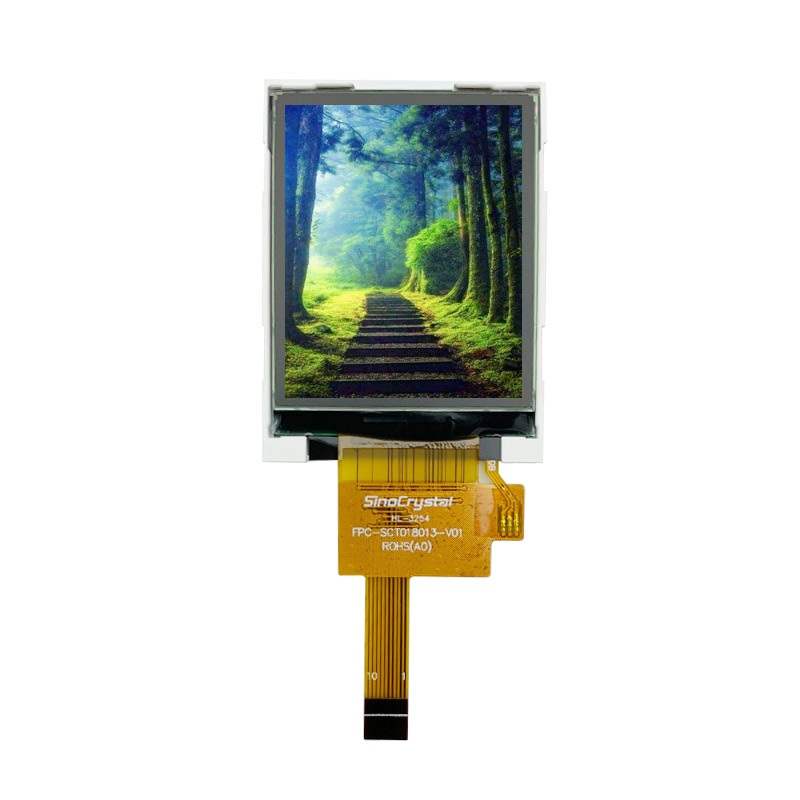

SCT018013-V01是一款1.77英寸TFT LCD显示屏,分辨率为128×160,内置ST7735S IC,并支持SPI接口,10 PIN,12点钟观看方向。

SKU: SCT018013-V01
Type: TFT彩屏
Mode: TN
Product No.: SCT018013-V01
Size: 1.8''
Resolution: 128*160
Outline Dimension: 34.00*45.83*2.60
Active Area: 28.032*35.040
Interface: SPI
IC: ST7735S
Brightness: 300Cd/m2
Touch Screen: No
View Direction: 12 o'clock
Pin No.: 10
Shape: 方形

DESCRIPTION

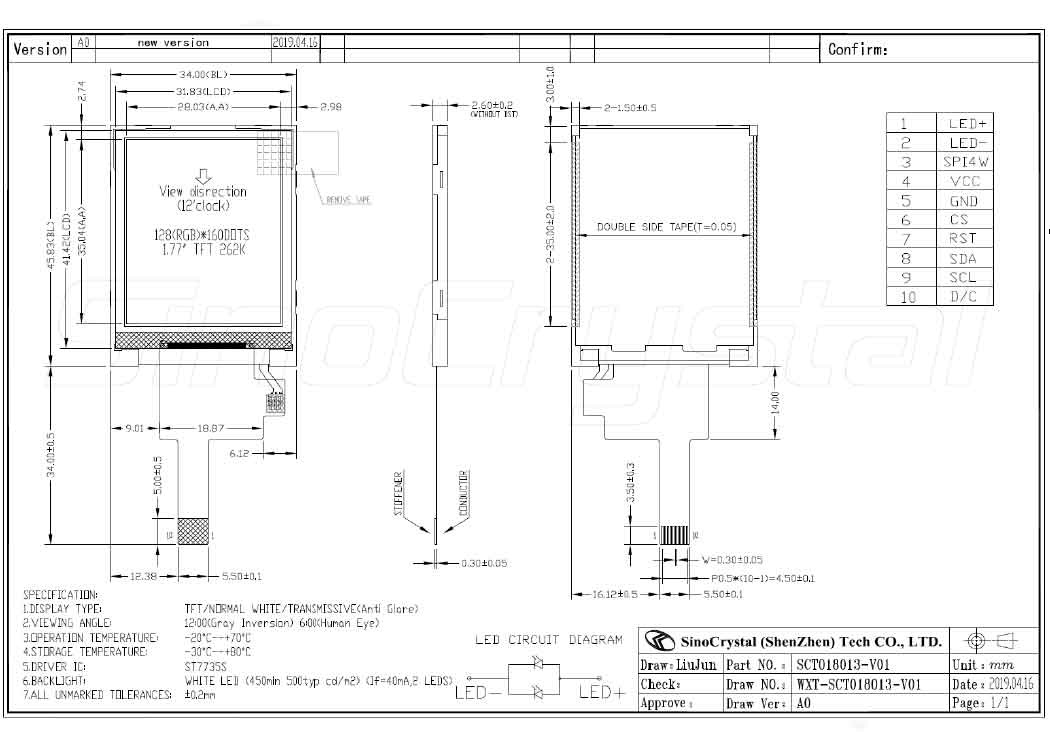

Drawing



General Specification

Item Nominal Dimension Unit
Dot Matrix 128 x RGB x 160 Dots
Module Size ( W×H×T ) 34.0 x 45.83 x 2.60 mm.
Active Area ( W×H ) 28.032 x 35.040 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.219 x 0.219 mm.
Color depth 262K(MAX) colors
Interface SPI
Driving IC ST7735S
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT
LCD Mode TN / Normal White
Backlight Type LED x 2 PCS



Interface Definition

Pin No Pin Symbol Type Description
1 LED+ P LED light, anode
2 LED- P LED light, cathode.
–  SPI4W=’0′, 3-line SPI Enable.
3 SPI4W I –  SPI4W=’1′, 4-line SPI Enable.
4 VCC P Power supply
5 GND P Ground
6 CS I Chip Select
7 RESET I Chip reset signal
8 SDA I/O Serial data input/output signal
9 SCL I Serial clock input signal
10 D/C I In 4-line SPI:
-D/CX=’1′: Display Data or Parameter.
-D/CX=’0′: Command Data. In 3-line SPI: no used
If not used, please fix this pin at GND level
