3.5英寸TFT，320* 240分辨率，RGB接口，HX8238-d IC ，54 PIN

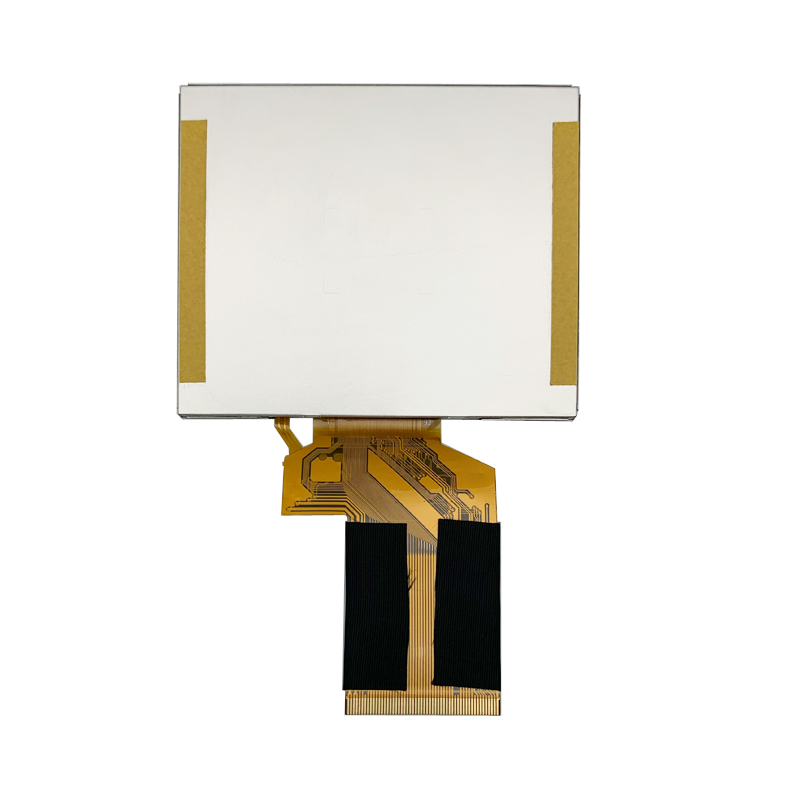

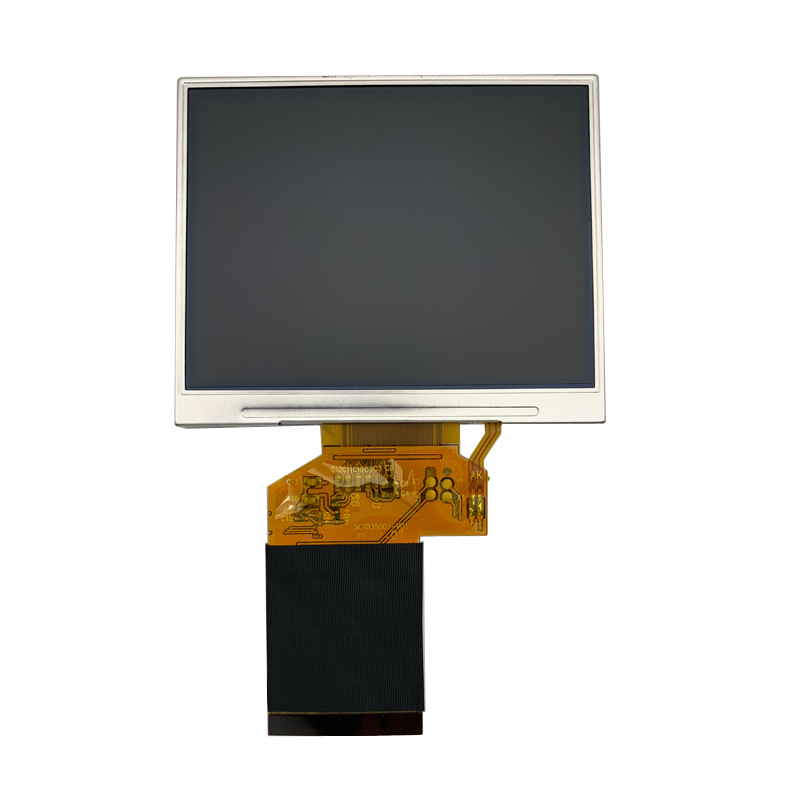

SCT035001-V01 is a 3.5 inch TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB interface, 54 PIN, 12 o’clock view direction
DESCRIPTION
Drawing
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 320 x RGB x 240 | Dots |
| Module Size ( W×H×T ) | 76.90*63.90*4.40 | mm. |
| Active Area ( W×H ) | 70.08*52.56 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 24bit RGB with Serial Interface | – |
| Driving IC | HX8238-D | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | Active maritx TFT, Transmissive type | – |
| LCD Mode | TN / Normal White | – |
| Backlight Type | LED x 6 | PCS |
Interface Definition
