5英寸HDMI LCD显示屏

5英寸HDMI LCD显示屏

Type: 树莓派(RPI)
Mode: TN
Product No.:
Size: 5.0''
Resolution: 800*480
Outline Dimension: 120.70*97.05*7.27
Active Area: 108.00*64.80
Interface: HDMI
IC: -
Brightness: -
Touch Screen: CTP
View Direction: 12 o'clock
Pin No.: -
Shape: 方形

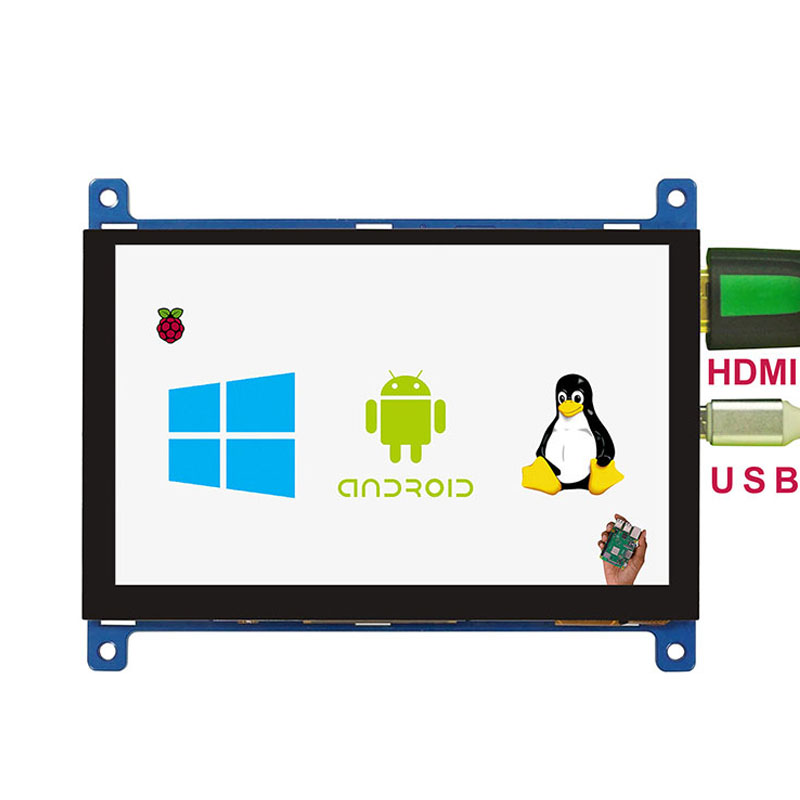

5 inch IPS screen, 800×480 resolution, Capacitive Touch Screen LCD, HDMI interface for displaying, Micro-USB port for the touch panel and power, Designed for Raspberry Pi, BB Black, Banana Pi Nano Pi, etc;The following is about 5 inch HDMI LCD Display related, I hope to help you better understand 5 inch HDMI LCD Display

Product instruction of the 5 inch HDMI LCD Display

We supply 5 inch HDMI LCD Display which is 800×480, 5 inch Capacitive Touch Screen LCD, HDMI interface, Supports Multi mini-PCs, Multi Systems

Product Specification of the 5 inch HDMI LCD Display

Item of general information Contents Unit
LCD Display Size(Diagonal) 5.0 inch

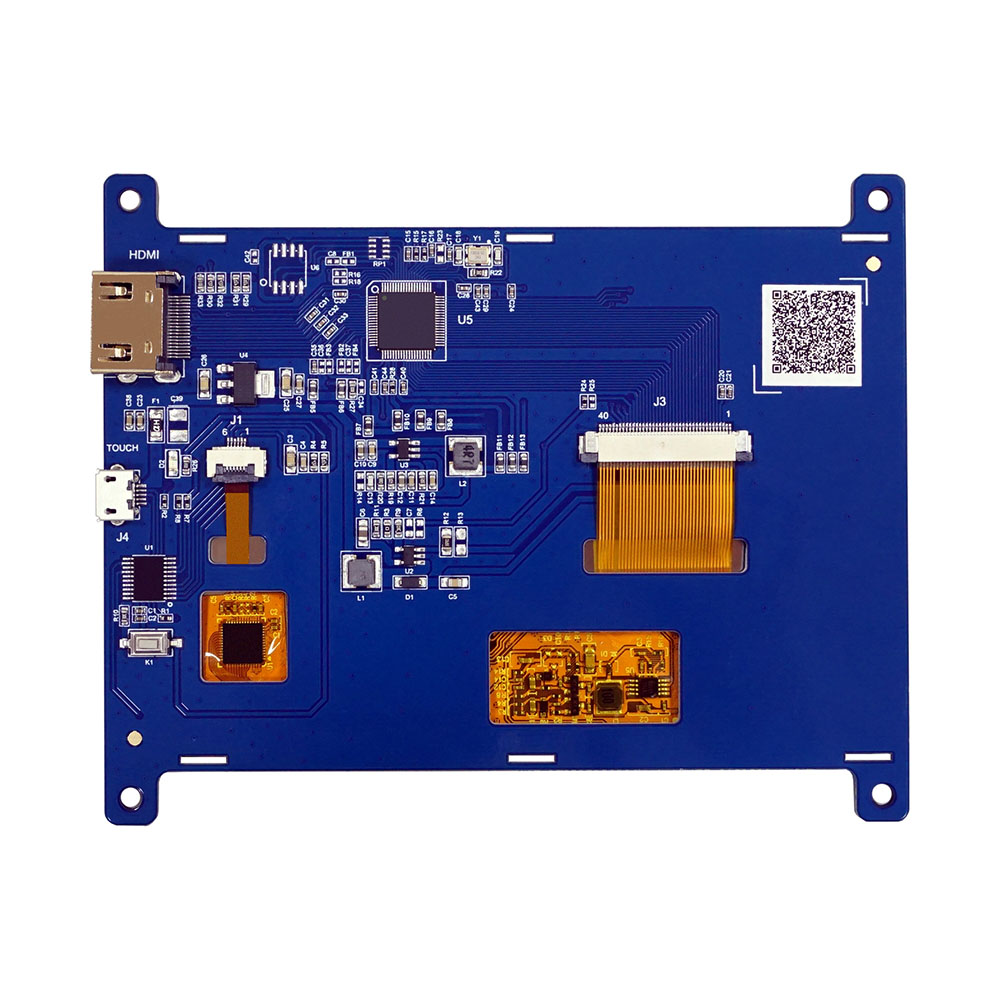

Module Structure LCD Display + CTP Touch + PCB
LCD Display Mode Normally White
Recommended Viewing Direction 12 o’clock
Gray inversion Direction 6 o’clock
Module size (WxHxT) 120.70×97.05×7.27 mm
Active area (W×H) 108.00×64.80 mm
Number of pixels(Resolution) 800RGB×480 pixel
Pixel pitch (WxH) 0.135×0.135 mm
Color Pixel Arrangement RGB Stripe
Module Interface Type LCD Display HDMI interface
CTP Touch USB interface
System Support Win7/Win8/Win10(Plug and play) –
Android/Linux(need to be configured first) –
Power Supply USB (5.0V)
Module Power consumption 480(Typ.) mA
Color Numbers 16.7M
Backlight Type White LED

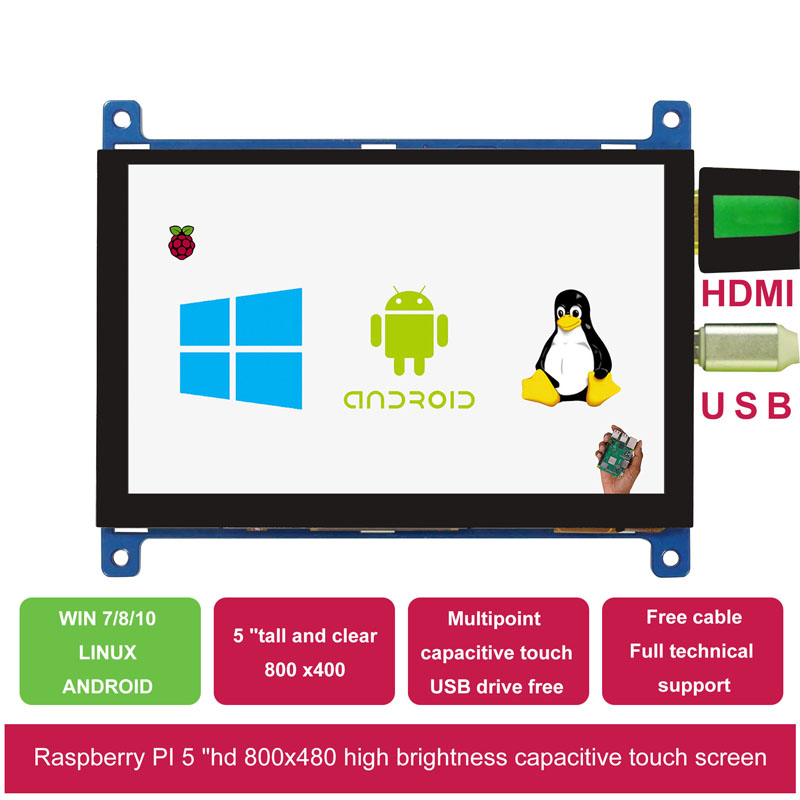

Product Feature and Application of the 5 inch HDMI LCD Display

5 inch LCD screen, 800×480 hardware resolution, configurable by software;

Capacitive touch control;

Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers

When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
