4.3英寸HDMI LCD显示屏

4.3英寸HDMI LCD显示屏

Product Advantage of the 4.3 inch HDMI LCD Display

USB power supply, USB is both power supply interface and touch interface;

Mature HDMI decoding chip with stable performance;

The capacitive touch screen adopts the structure of G+G with fully extinction tempered glass, which supports 5 touch points mostly and would make the customer experience well;

Windows system would be self-adaption, customer only need to configure HDMI output resolution for other systems . It would greatly save time for customers debugging LCD driver,  and customers quickly develop their own products conveniently;

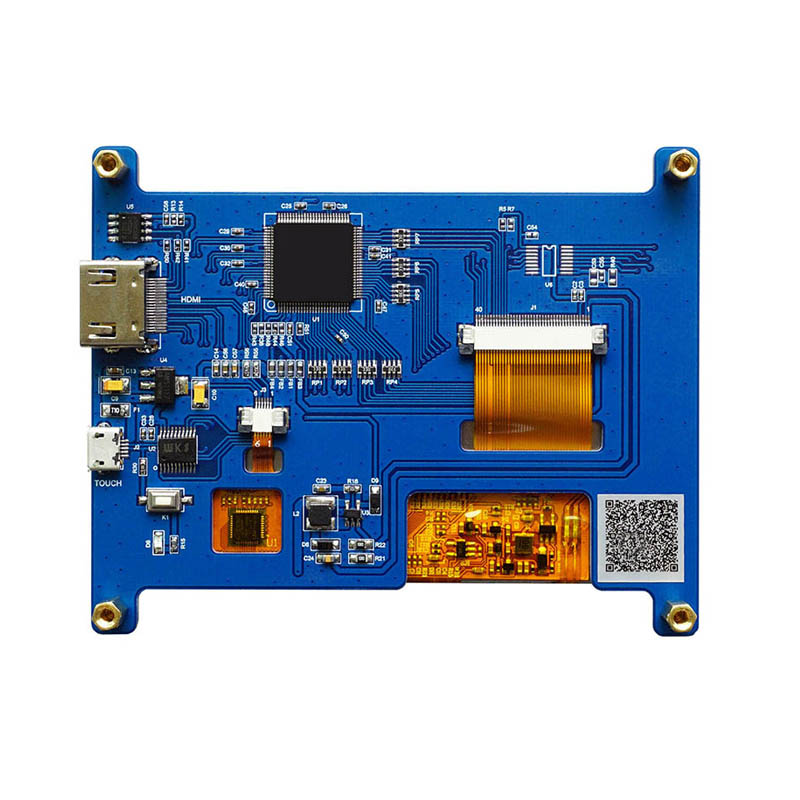

PCB adopts double-sided gold sinking process with stable and reliable performance;

Positioning holes are reserved around the PCB to facilitate customer installation and fixation.


Product Quality Control of the 4.3 inch HDMI LCD Display

Before package and shipment, the original products will be tested one by one by our technicians and QC team to make sure the quality of every product is good.
We will test goods strictly according to our standard inspection before shipment.

Type: 树莓派(RPI)
Mode: IPS
Product No.:
Size: 4.3''
Resolution: 800*480
Outline Dimension: 105.80*85.09*6.73
Active Area: 95.04*53.86
Interface: HDMI
IC: -
Brightness: -
Touch Screen: CTP
View Direction: IPS
Pin No.: -
Shape: 方形

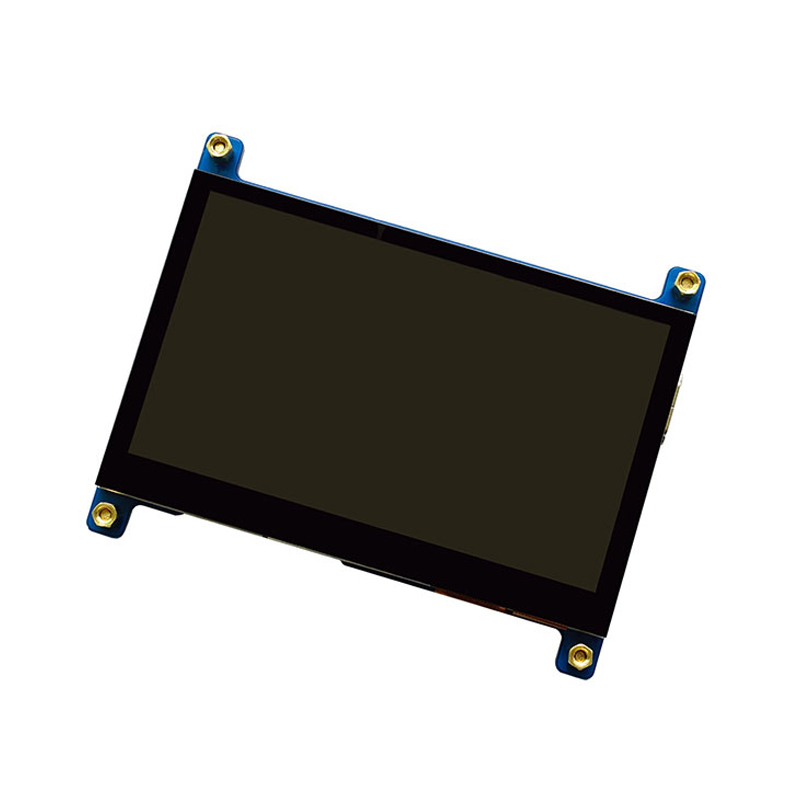

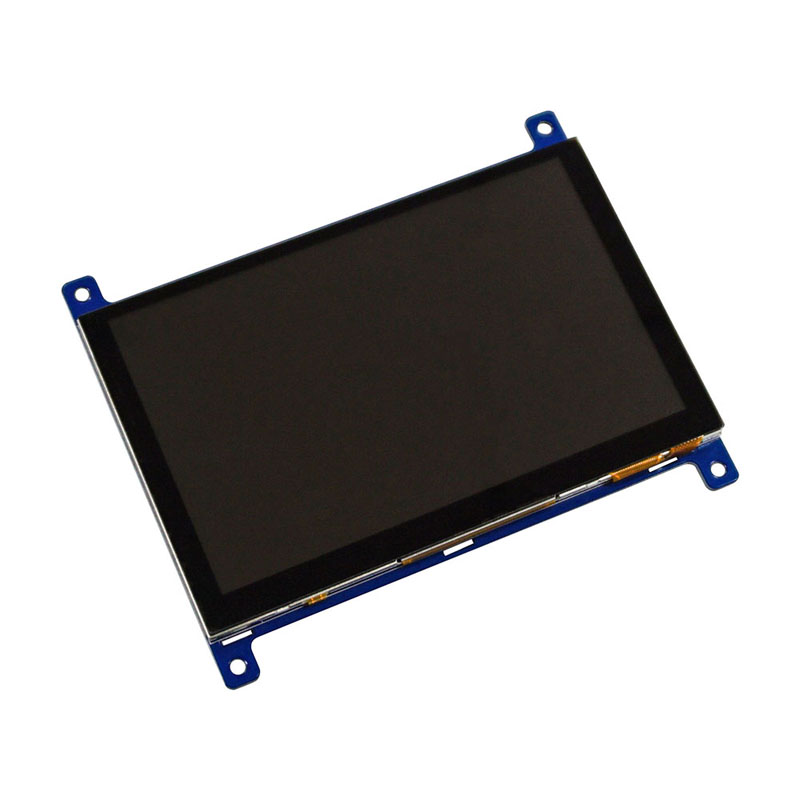

4.3 inch IPS screen, 800×480 resolution, Capacitive Touch Screen LCD, HDMI interface for displaying, Micro-USB port for the touch panel and power, Designed for Raspberry Pi, BB Black, Banana Pi Nano Pi, etc;The following is about 4.3 inch HDMI LCD Display related, I hope to help you better understand 4.3 inch HDMI LCD Display.

Product instruction of the 4.3 inch HDMI LCD Display

We supply 4.3 inch HDMI LCD Display which is 4.3 inch HDMI LCD, 800×480, IPS, Capacitive Touch Screen LCD, HDMI interface, supports Multi mini-PCs and Multi Systems.

Product Specification of the 4.3 inch HDMI LCD Display


Item of general information Contents Unit
LCD Display Size (Diagonal) 4.3 inch
Module Structure LCD Display + CTP Touch + PCB  –
LCD Display Type TFT/IPS  –
LCD Display Mode Normally Black  –
Recommended Viewing Direction ALL VIEW  –
Module size (WxHxT) 105.80×85.09×6.73 mm
Active area (WxH) 95.04×53.86 mm
Number of pixels (Resolution) 800RGBx480 pixel
Pixel pitch (WxH) 0.1188×0.1122 mm
Color Pixel Arrangement RGB Stripe  –
Module Interface Type LCD Display  HDMI interface  –
CTP Touch  USB interface  –
System Support Win7/Win8/Win10(Plug and play)  –
Android/Linux (need to be configured first)  –
Power Supply Micro USB (5.0V)  –
Module Power consumption 500(Max)  mA
Color Numbers 16.7M  –
Backlight Type White LED  –


Product Feature and Application of the 4.3 inch HDMI LCD Display


4.3 inch IPS screen, 800×480 hardware resolution, configurable by software;

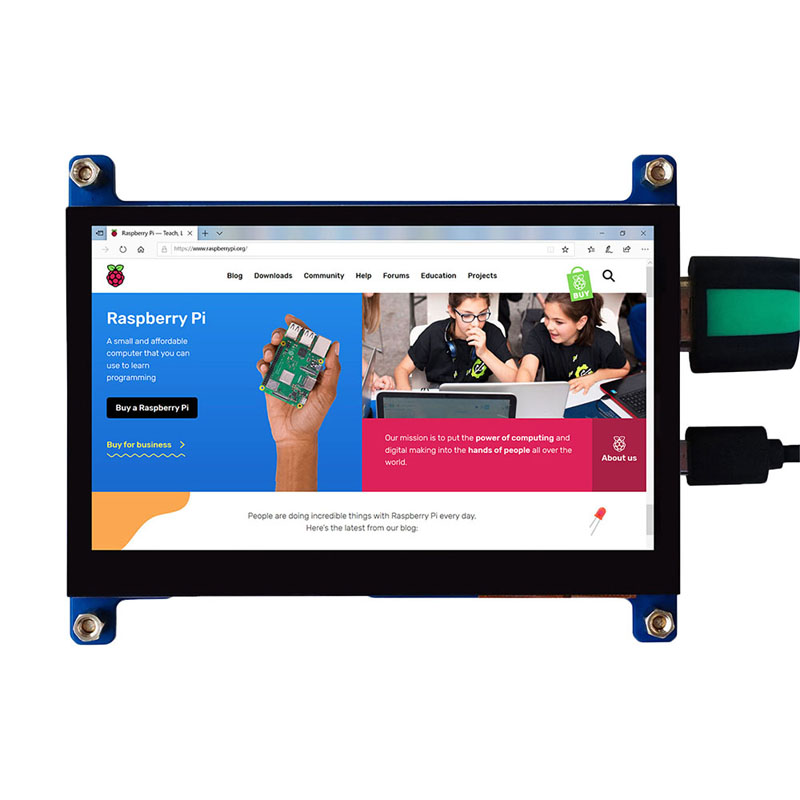

Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers

When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free;

When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free;

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
