10.1英寸HDMI LCD显示屏

10.1英寸HDMI LCD显示屏

Product Advantage of the 10.1 inch HDMI LCD Display

USB power supply, USB is both power supply interface and touch interface;

Mature HDMI decoding chip with stable performance;

The capacitive touch screen adopts the structure of G+G with fully extinction tempered glass, which supports 5 touch points mostly and would make the customer experience well;

Windows system would be self-adaption, customer only need to configure HDMI output resolution for other systems . It would greatly save time for customers debugging LCD driver,  and customers quickly develop their own products conveniently.

PCB adopts double-sided gold sinking process with stable and reliable performance.

Positioning holes are reserved around the PCB to facilitate customer installation and fixation.


Product Quality Control of the 10.1 inch HDMI LCD Display

Before package and shipment, the original products will be tested one by one by our technicians and QC team to make sure the quality of every product is good.

We will test goods strictly according to our standard inspection before shipment.


SKU: SC101009-V01
Type: 树莓派(RPI)
Mode: IPS
Product No.: SC101009-V01
Size: 10.1''
Resolution: 1280*800
Outline Dimension: 229.46*149.10*4.90
Active Area: 216.96*135.60
Interface: HDMI
IC: -
Brightness: -
Touch Screen: CTP
View Direction: IPS
Pin No.: -
Shape: 方形

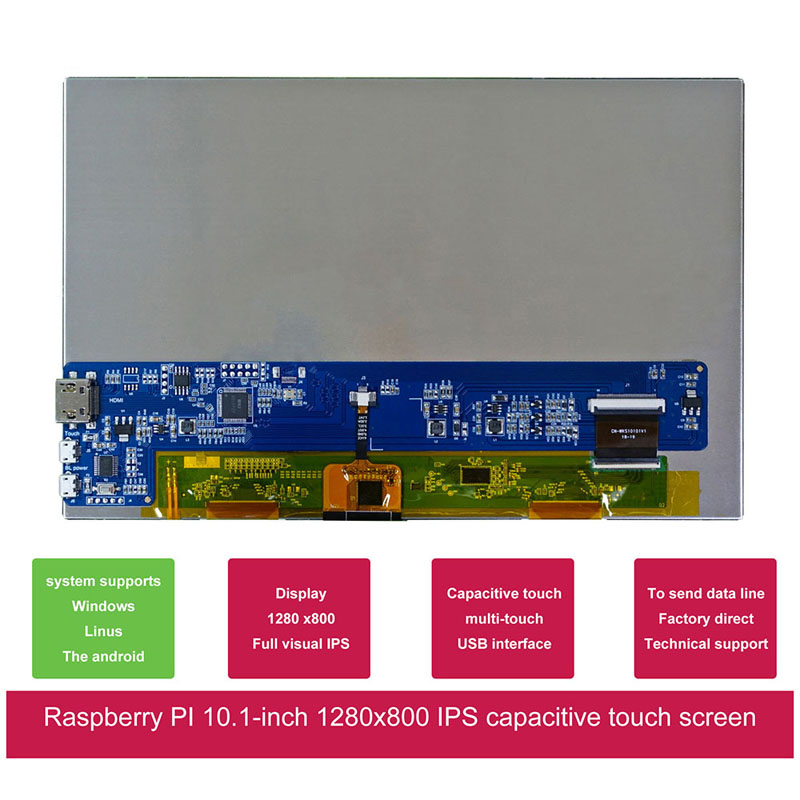

10.1 inch IPS screen, 1280×800 resolution, Capacitive Touch Screen LCD, HDMI interface for displaying, Micro-USB ports for the touch panel and power, Designed for Raspberry Pi, BB Black, Banana Pi Nano Pi, etc;The following is about 10.1 inch HDMI LCD Display related, I hope to help you better understand 10.1 inch HDMI LCD Display.

Product instruction of the 10.1 inch HDMI LCD Display

We supply 10.1 inch HDMI LCD Display which is IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems.


Product Specification of the 10.1 inch HDMI LCD Display

Item of general information Contents Unit
LCD Display Size(Diagonal) 10.1 inch
Module Structure LCD Display + CTP Touch + PCB
LCD Display Mode Normally Black
Recommended Viewing Direction Free
Gray inversion Direction Free
Module size (WxHxT) 229.46×149.10×4.90 mm
Active area (WxH) 216.96×135.60 mm
Number of pixels(Resolution) 1280RGBx800 pixel
Pixel pitch (WxH) 0.1695×0.1695 mm
Color Pixel Arrangement RGB Stripe
Module Interface Type LCD Display HDMI interface
CTP Touch USB interface
System Support Win7/Win8/Win10(Plug and play) –
Android/Linux(need to be configured first) –
Power Supply USB (5.0V)
Module Power consumption 800(Typ.) mA
Color Numbers  16.7M
Backlight Type White LED


Product Feature and Application of the 10.1 inch HDMI LCD Display

10.1 inch IPS screen,1280×800 hardware resolution

Toughened glass capacitive touch panel, 6H hardness

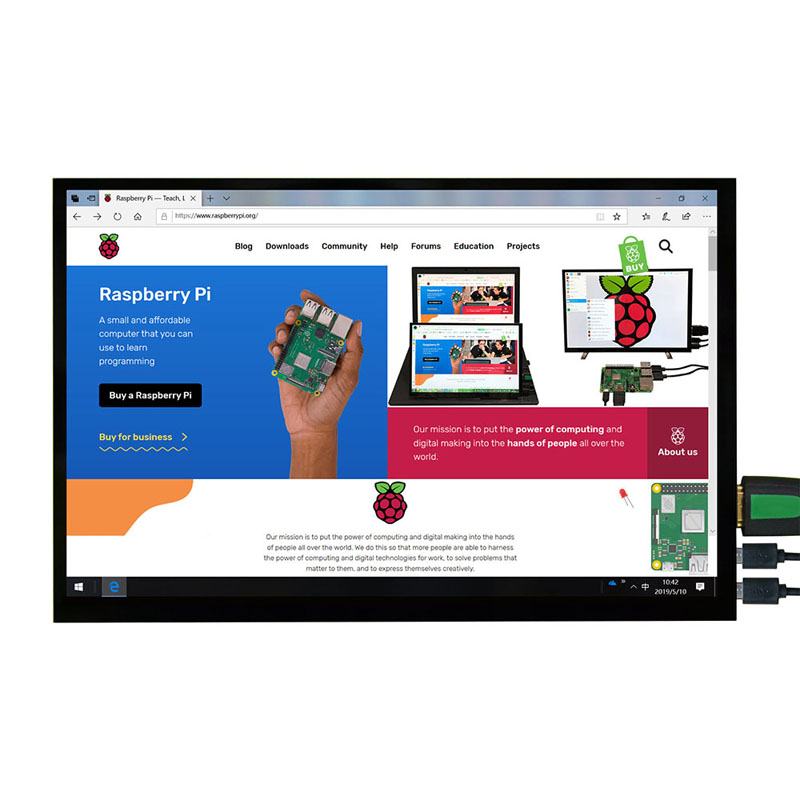

Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers

When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free

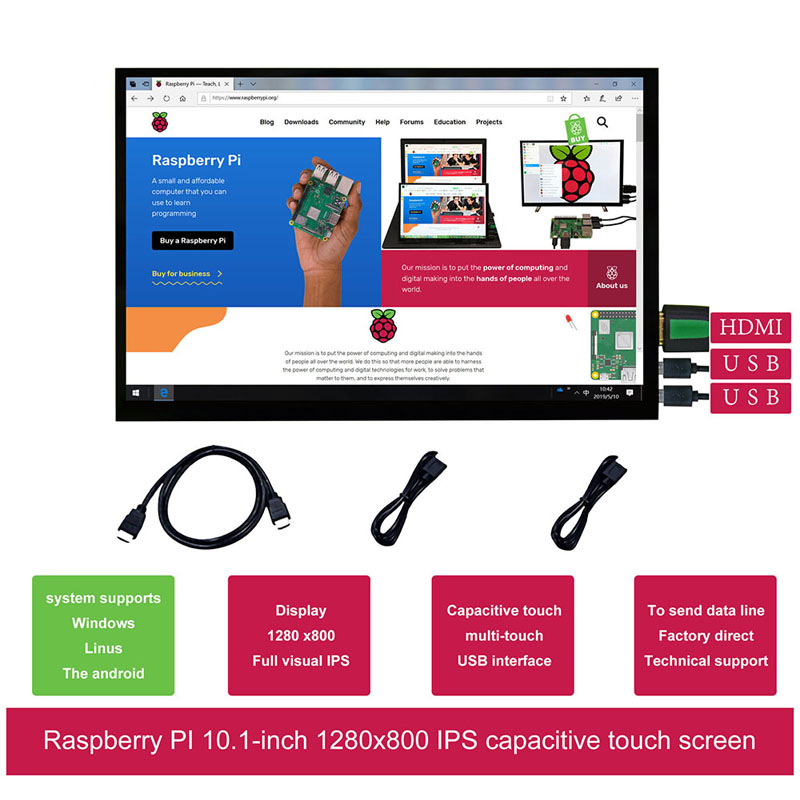

HDMI interface for displaying, USB interface for touch control

Supports 5-level backlight adjustment
