1.2寸OLED, 智能手表可用,390 * 390, RM67162 IC，24PIN

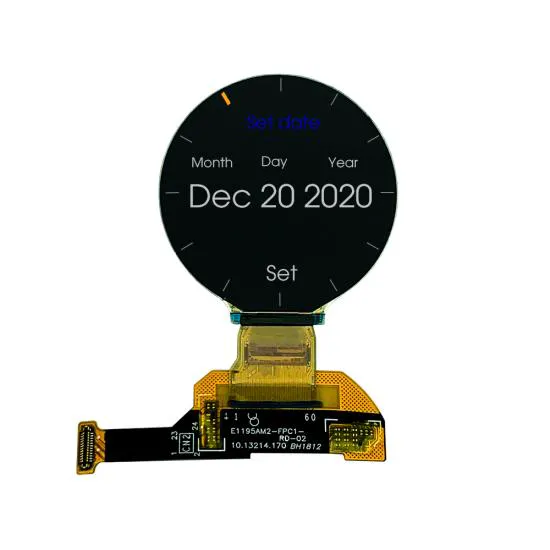

SCE119001-V01是OLED圆形屏幕，具有COG类型，390 * 390分辨率，RM67162 IC，MIPI / SPI接口，24 PIN

Inquiry Now

SKU: SCE119001-V01

DESCRIPTION

ITEM	SPECIFICATIONS	UNIT

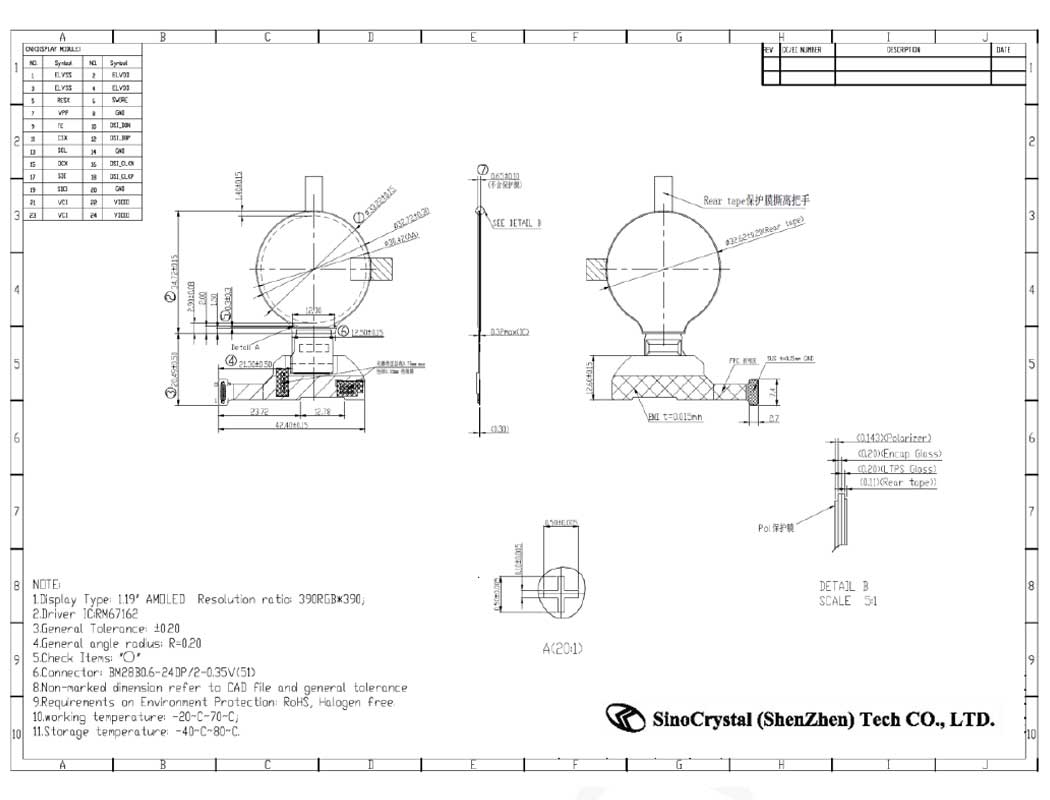

MODULE SIZE	33.22 x 34.72 x 0.68	mm
LTPS Glass Outline	33.22 x 34.72	mm
Encapsulation Glass Outline	33.22	mm
Number of Dot	390 x 390	dots
Active Area	30.42	mm
Diagonal Size	1.19	inch
Pixel pitch	78*78	um
Glass Thickness (LTPS Glass)	0.2/0.2	mm

PIN NO.	SYMBOL	TYPE	FUNCTION DESCRIPTIONS
1	ELVSS	Power	AMOLED power Negative
2	ELVDD	Power	AMOLED power Positive
3	ELVSS	Power	AMOLED power Negative
4	ELVDD	Power	AMOLED power Positive
5	RESX	I	This signal will reset the device and must be applied to properly initialize the chip. Active low.
6	SWIRE	O	Swire protocol setting pin of Power IC
7	VPP	I	Power supply for OTP. Leave the pin to open when not in use.
8	GND	Power	The power ground
9	TE	O	Tear effect output
10	DSI_D0N	I/O	MIPI DSI data0-
11	CSX	I	SPI Enable clock
12	DSI_D0N	I/O	MIPI DSI data0+
13	SCL	I	SPI Serial clock
14	GND	Power	The power ground
15	DCX	I	SPI CMD/Data selection signal
16	DSI_CLKN	I	MIPI DSI clock-
17	SDI	I	SPI Data Signal
18	DSI_CLKP	I/O	MIPI DSI clock+
19	SDO	O	SPI Output signal
20	GND	Power	The power ground
21	VCI	Power	Driver IC analog supply
22	VDDIO	Power	Driver IC digital I/O supply
23	VCI	Power	Driver IC analog supply
24	VDDIO	Power	Driver IC digital I/O supply
