0.96OLED,128×64,SSD1315Z IC,30PIN
SCE096009-V01是一个COG型的OLED显示器，128×64分辨率，SSD1315Z集成电路，3/4线串行接口，I2C，30针
DESCRIPTION

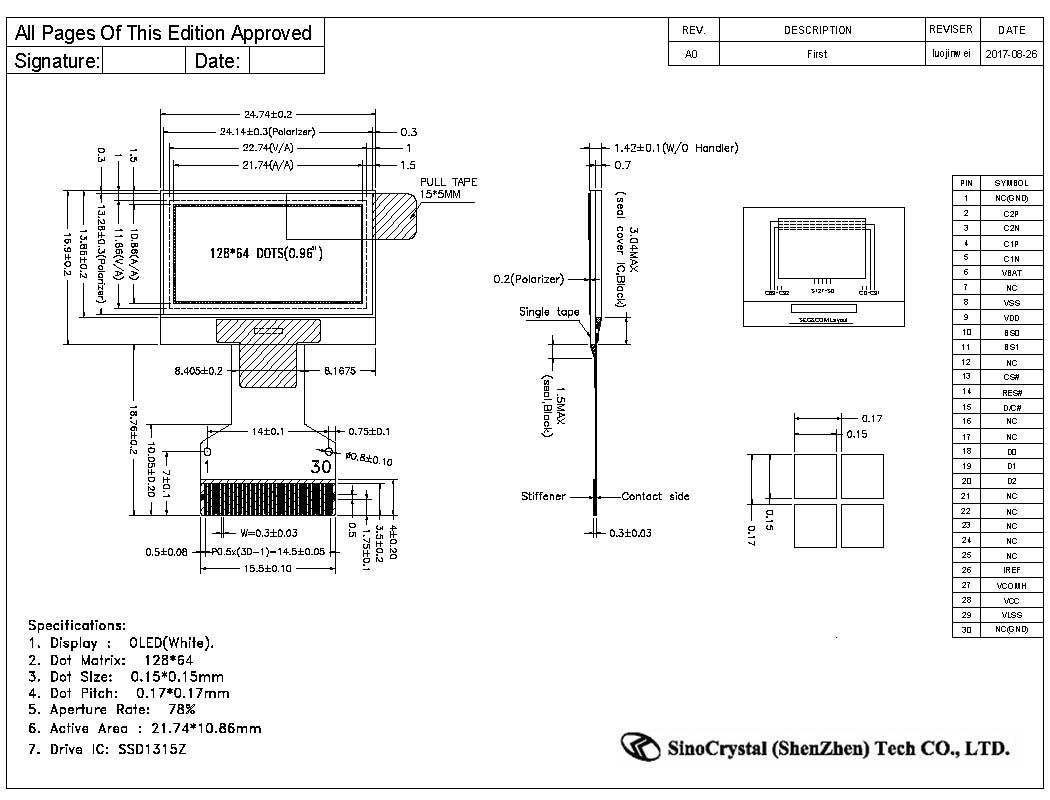

Drawing
General Specification
| ITEM | SPECIFICATIONS | UNIT |
| MODULE SIZE | 24.74(W)x16.9(H)x1.42(D) | mm |
| VIEWING AREA | 22.74 (W) x 11.86(H) | mm |
| ACTIVE AREA | 21.74 (W) x10.86(H) | mm |
| DOT SIZE | 0.15(W) x0.15(H) | mm |
| DOT PITCH | 0.17(W) x0.17 (H) | mm |
| ASSY.TYPE | COG | — |
| WEIGHT | TBD |
Interface Definition
| PIN NO. | SYMBOL | TYPE | FUNCTION DESCRIPTIONS |
| 1 | NC(GND) | P | It should be connected to external ground. |
| 2 | C2P | C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor. Connect to each other with a capacitor. They must be floated when the Charge pump not use. |
|
| 3 | C2N | ||
| 4 | C1P | I | |
| 5 | C1N | ||
| 6 | VBAT | P | Power supply for charge pump regulator circuit. It must be connected to external source when charge pump is used. It must be float when charge pump is not used. |
| 7 | NC | NC | |
| 8 | VSS | P | Ground pin. It must be connected to external ground. |
| 9 | VDD | P | Power pin for logic circuit. It must be connected to external source. |
| 10 | BS0 | I | Interface selection pins.
|
| 11 | BS1 | ||
| 12 | NC | NC. | |
| 13 | CS# | I | Chip Select input pin. Active “L” |
| 14 | RES# | I | Hardware reset input pin. Active “L”. |
| 15 | D/C# | I | This is Data/Command control pin. When the pin is pulled HIGH, the data at D[7:0] is data. When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section. When 3-wire serial interface is selected, this pin must be connected to VSS |
| 16 | NC | NC. | |
| 17 | NC | NC. | |
| 18 | D0 | I/O | When serial interface mode is selected,D2 should be
either tied LOW or tied together with D1 as the serial data
input: SDIN, and D0 will be the serial clock input: SCLK. When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0 is the serial clock input, SCL. |
| 19 | D1 | ||
| 20 | D2 | ||
| 22 | NC | NC. | |
| 23 | NC | NC. | |
| 24 | NC | NC. | |
| 25 | NC | NC. | |
| 26 | IREF | I | Current reference for brightness adjustment. This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum. |
| 27 | VCOMH | O | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
| 28 | VCC | P | Power supply for OLED driving voltage. A capacitor should be
connected between this pin and VSS, when charge pump is
used. It must be connected to external source when charge pump is not used. |
| 29 | VLSS | P | This is an analog ground pin. It should be connected to VSS externally. |
| 30 | NC(GND) | P | It should be connected to external ground. |
