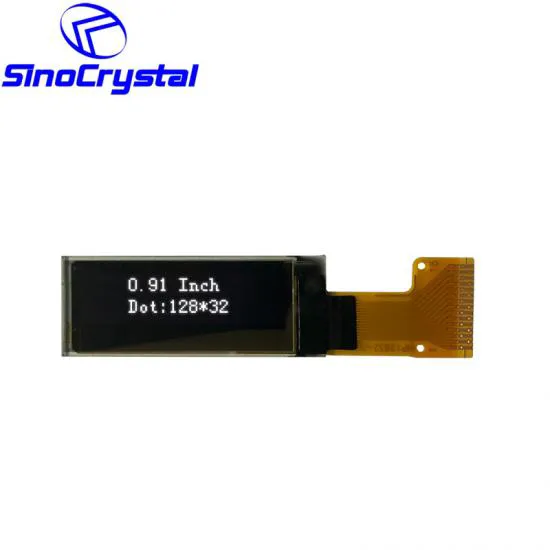

0.91 OLED，128×32，SSD1316BZ IC，15PIN
SCE091003-V01是COG型，128×32分辨率，SSD1306BZ IC，4线串行接口，15PIN的OLED显示器
DESCRIPTION

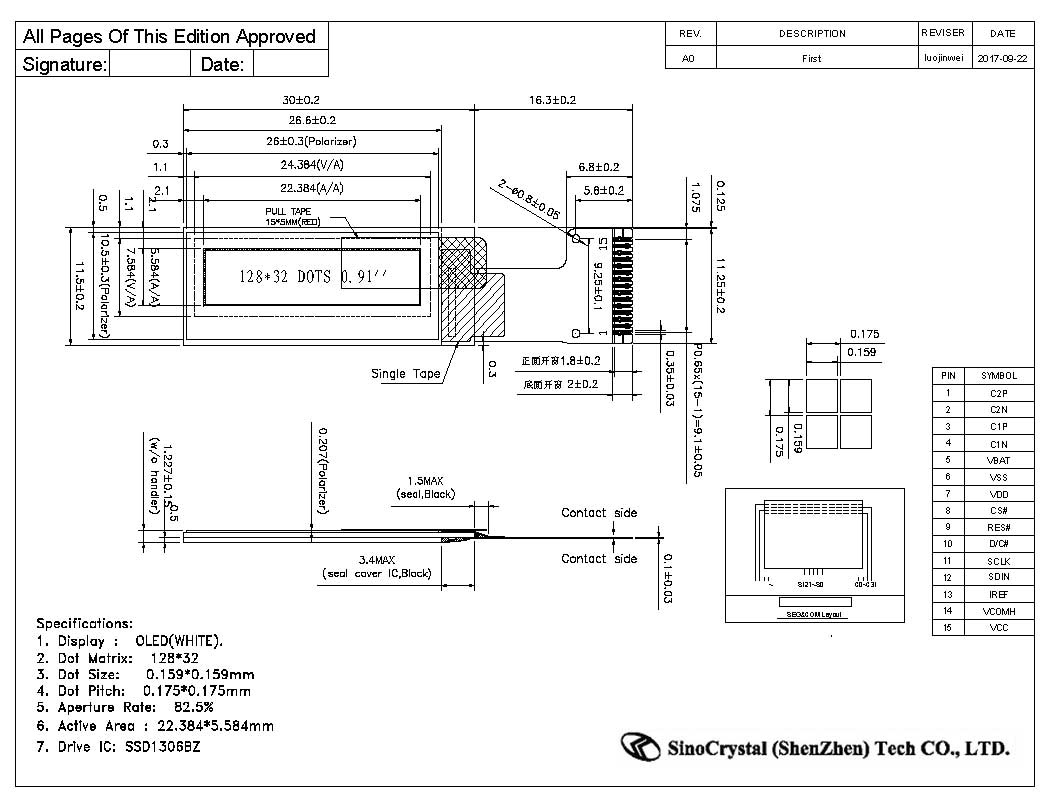

General Specification
| ITEM | SPECIFICATIONS | UNIT |
| MODULE SIZE | 30.0(W)x11.5(H)x1.227(D) | mm |
| VIEWING AREA | 24.384 (W) x 7.584(H) | mm |
| ACTIVE AREA | 22.384 (W) x5.584(H) | mm |
| DOT SIZE | 0.159(W) x0.159(H) | mm |
| DOT PITCH | 0.175(W) x0.175 (H) | mm |
| ASSY.TYPE | COG | — |
| WEIGHT | TBD |
Interface Definition
| PIN NO. | SYMBOL | TYPE | FUNCTION DESCRIPTIONS |
| 1 | C2P | C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor. Connect to each other with a capacitor. They must be floated when the Charge pump not use. |
|
| 2 | C2N | ||
| 3 | C1P | I | |
| 4 | C1N | ||
| Power supply for charge pump regulator circuit. | |||
| 5 | VBAT | P | Power supply for charge pump regulator circuit. It must be connected to external source when charge pump is used. It must be float when charge pump is not used. |
| 6 | VSS | P | Ground pin. It must be connected to external ground. |
| 7 | VDD | P | Power pin for logic circuit. It must be connected to external source. |
| 8 | CS# | I | Chip Select input pin. Active “L” |
| 9 | RES# | I | Hardware reset input pin. Active “L”. |
| 10 | DC# | I | This is Data/Command control pin. When the pin is pulled HIGH, the data at D[7:0] is data. When the pin is pulled LOW, the data at D[7:0] is command. |
| 11 | SCLK | I | 4 wire serial interface clock wire |
| 12 | SDIN | I | 4 wire serial interface data wire |
| 13 | IREF | I | Current reference for brightness adjustment. This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum. |
| 14 | VCOMH | O | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
| 15 | VCC | P | Power supply for OLED driving voltage. A capacitor should be
connected between this pin and VSS, when charge pump is
used. It must be connected to external source when charge pump is not used. |
