12864单色图形LCD,分辨率12864 ,COG ,ST7565R IC, 30 PIN

12864单色图形LCD,分辨率12864 ,COG ,ST7565R IC, 30 PIN

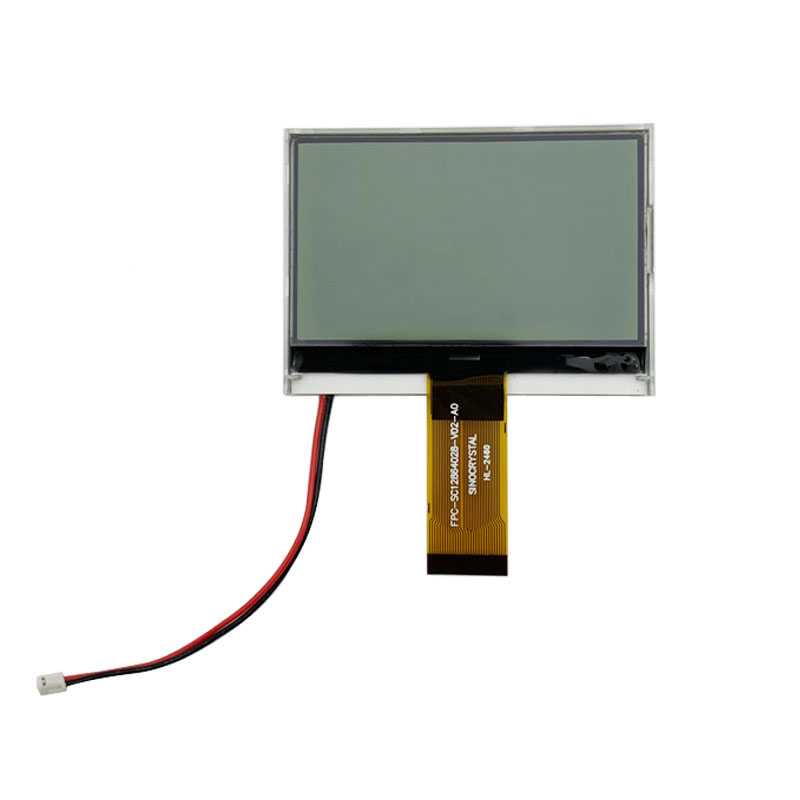

SC12864028-V02是分辨率为128 * 64的图形LCD显示屏,内置ST7565R-G-1 IC,30 PIN,6点钟方向。

SKU: SC12864028-V02
Type: 单色图形模块
Mode: FSTN
Product No.: SC12864028-V02
Size: -
Resolution: 128*64
Outline Dimension: 71.0*52.6*6.8
Active Area: 65.5*38.0
Interface: -
IC: ST7565R
Brightness: -
Touch Screen: No
View Direction: 6 o'clock
Pin No.: 30
Shape: 方形

DESCRIPTION

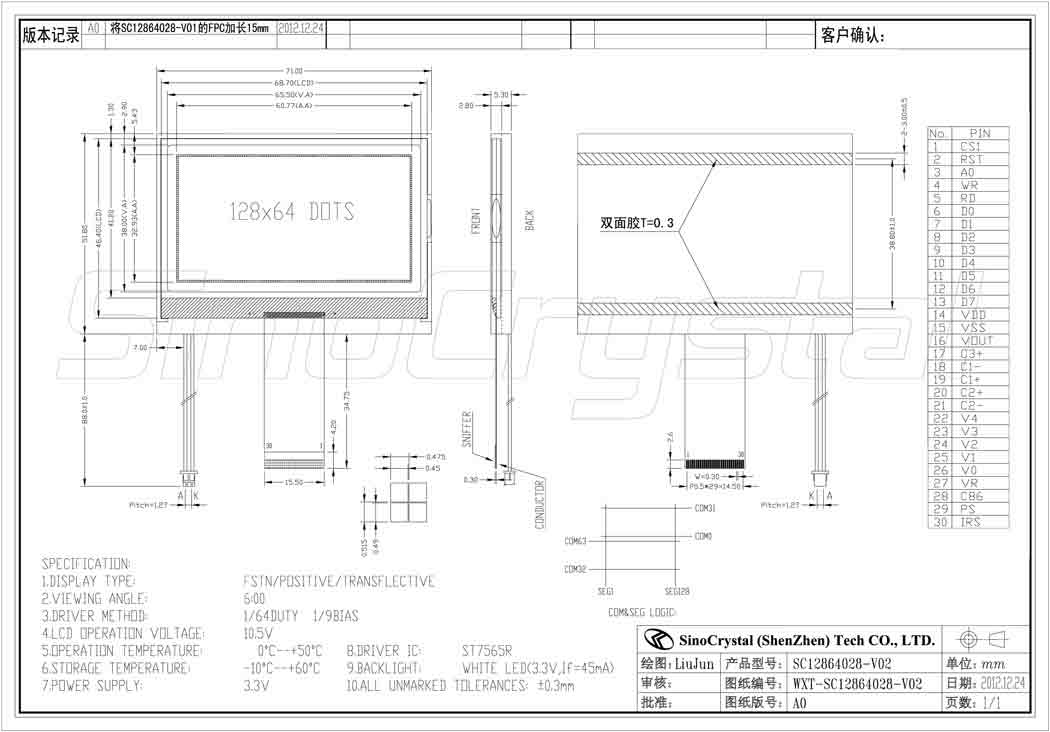

Drawing

General Specification

ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 128×64 Mm
 MODULE DIMENSION 71.00*51.80*6.80 Mm
 EFFECTIVE DISPLAY AREA 60.77×32.93 Mm
 DOT SIZE 0.45×0.49 Mm
 DOT PITCH 0.476×0.515 Mm
 LCD TYPE FSTN/POSITIVE/TRANSMISSIVE
 DUTY 1/64
 VIEWING DIRECTION 6 o’clock
 BACK LIGHT TYPE SIDE LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT 85 G



Interface Definition

Pin No. Symbol Level Description
1 CS1 H/L Chip select signal
2 RST H/L Chip reset signal
3 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
4 WR(R/W) H/L 8080 series: Write signal
6800 series: Read or Write signal
5 RD(E) H/L 8080 series: Read signal
6800 series: Enable signal
6–13 D0-D5
D6(SCL)
D7(SI)
H/L This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface (SPI-4) is selected (P/S = “L”) :
D7 : serial data input (SI) ;
D6 : the serial clock input (SCL).
D0 to D5 should be connected to VDD or floating.
14 VDD Supply voltage for logic
15 VSS Ground
16 VOUT Power for LCD
17 C3+ DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
18 C1- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
19 C1+ DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
20 C2+ DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
21 C2- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
22-26 V4-V0 This is a multi-level power supply for the liquid crystal drive.
27 VR Contrast adjustment input.
28 C86 H/L C86 = “H”: 6800 Series MPU interface.
C86 = “L”: 8080 Series MPU interface.
29 PS H/L P/S = “H”: Parallel interface
P/S = “L”: Serial interface
30 IRS H/L RS = “H”: Use the internal resistors
IRS = “L”: Do not use the internal resistors.
