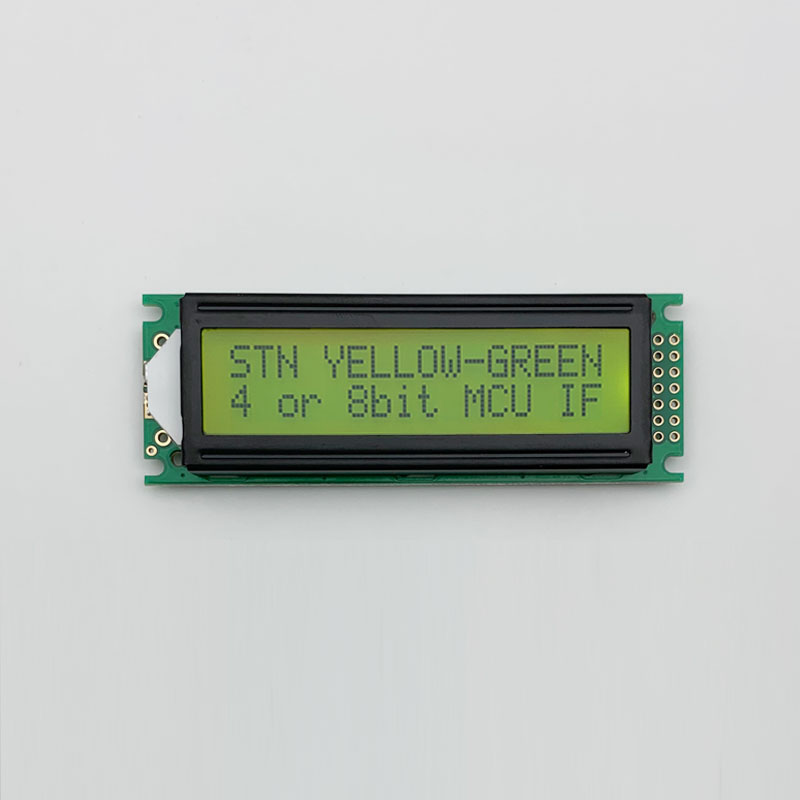

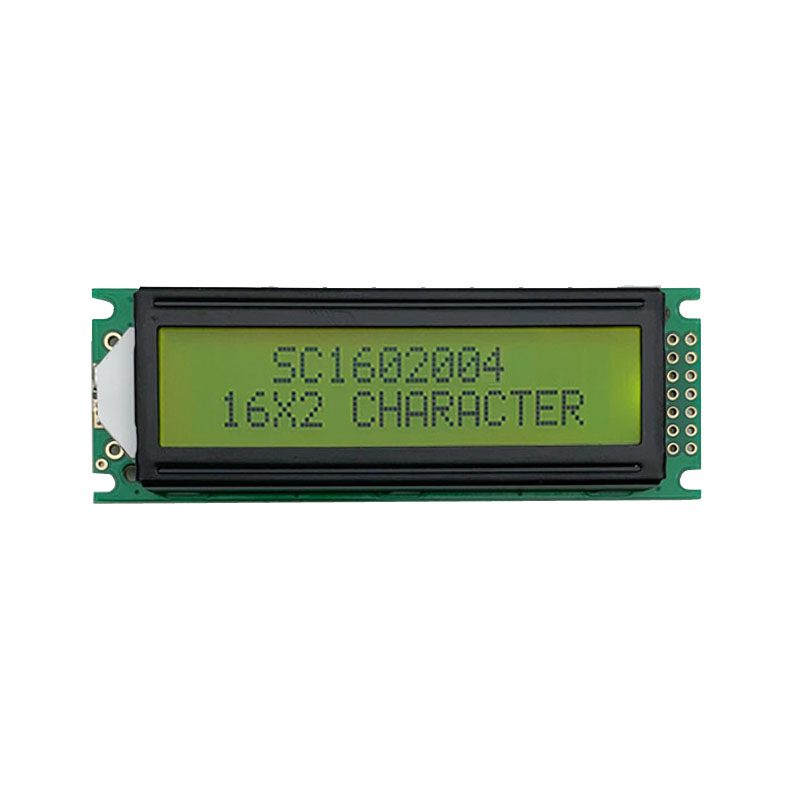

16 * 2单色字符液晶显示器,黄绿色Stn ,AIP31066 IC

16 * 2单色字符液晶显示器,黄绿色Stn ,AIP31066 IC

SC1602004-V01是一款分辨率为16 * 2的字符型LCD显示器,内置AIP31066 IC,支持8位MPU接口,16 PIN,6点钟观看方向。

SKU: SC1602004-V01
Type: 单色字符模块
Mode: STN/Y-G
Product No.: SC1602004-V01
Size: -
Resolution: 16*2
Outline Dimension: 85*30*11.8
Active Area: 64.3*16
Interface: 8bit MCU
IC: AIP31066
Brightness: -
Touch Screen: No
View Direction: 6 o'clock
Pin No.: 16
Shape: 方形

DESCRIPTION

General Specification

Item Standard Value Unit
  Display Type 16 Characters x 2 Lines Mm
  LCD Type STN,POSITIVE(Y-G),TRANSFLECTIVE Mm
  Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
  Viewing Direction 6 O’Clock Mm
  Backlight Type SIDE Y-G Mm
  Interface 8-bit MPU interface
  Driver IC AIP31066

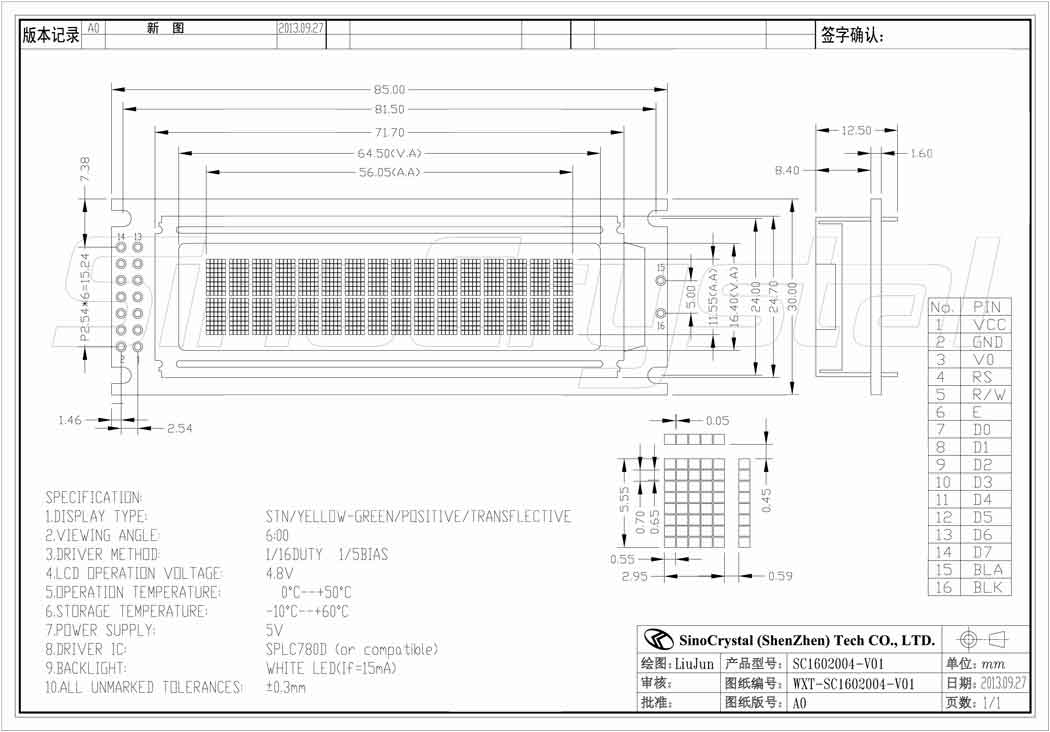

  Outline Dimension 85(L) * 30(W) * 11.8(T) mm
  Viewing Area 64.3(L) * 16( W) mm
  Dot size 0.56(W) ´ 0.61(H) mm
  Dot pitch 0.6(W) ´ 0.65(H) mm
  Character size 2.96(W) ´ 5.16(H) mm



Interface Definition

Pin No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7 DB0 Data Bus
8 DB1 Data Bus
9 DB2 Data Bus
10 DB3 Data Bus
11 DB4 Data Bus
12 DB5 Data Bus
13 DB6 Data Bus
14 DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply – (0V)
